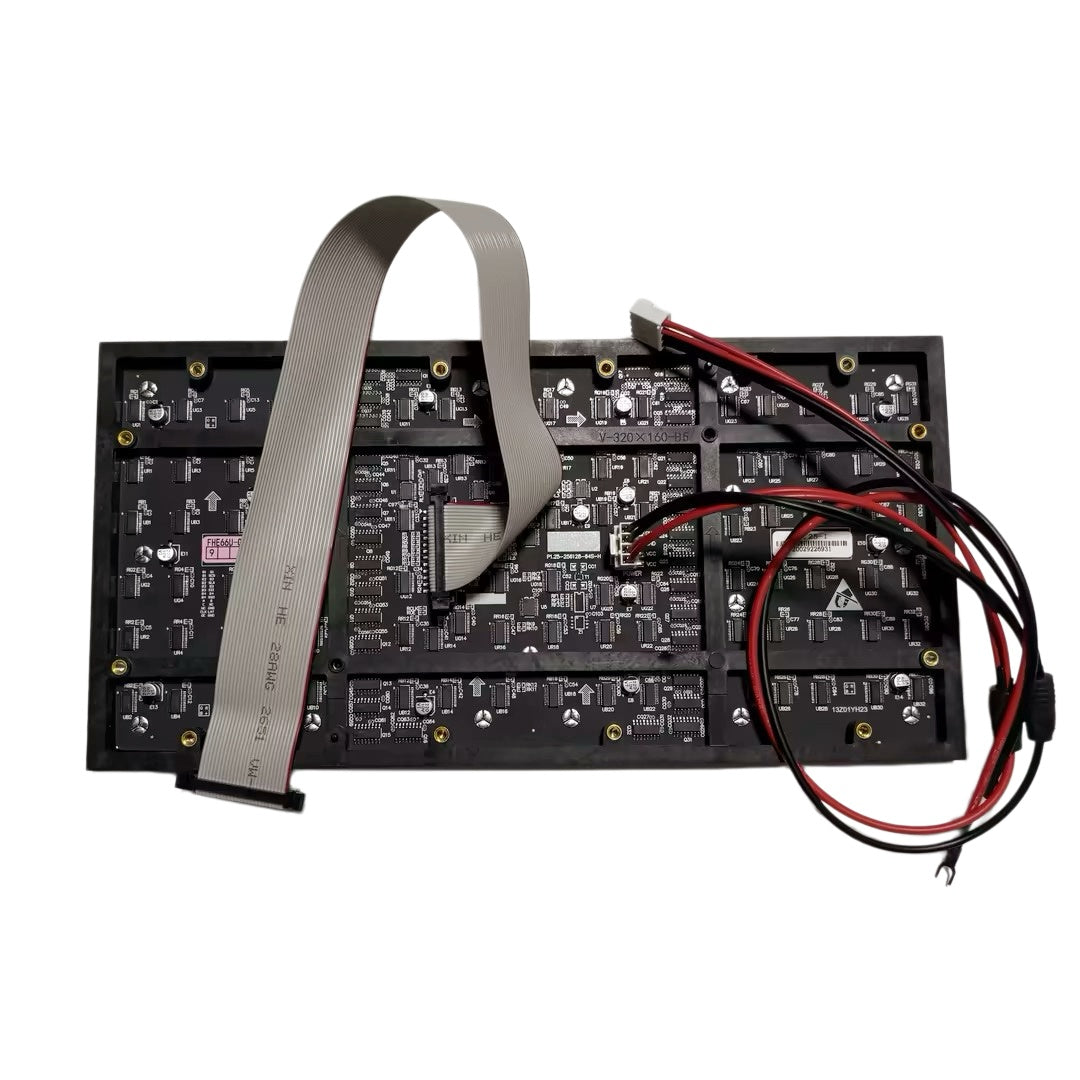

ID-S Series – P1.25 Indoor LED Display Module | 320×160mm | 32,768 Pixels Full Color RGB Tile | LED Video Panel for High-Resolution Display
About this item
- Durable & Reliable – Indoor module with stable performance for controlled environments, protecting LEDs from dust, shock, and minor impacts.
- High Precision Visuals – Pixel pitch 1.25 mm, 1/64 scan, vivid and smooth display with accurate color reproduction.
- Bright & Long-lasting – 600 nits brightness with low lumen depreciation for consistent performance over time.
- Wide Viewing Angle – H:160° / V:160° for uniform color and brightness across the screen.
- Flexible Installation – Seamless splicing, supports creative shapes. Requires receiving card, hub card, sending card, software, and DC 5V power supply.

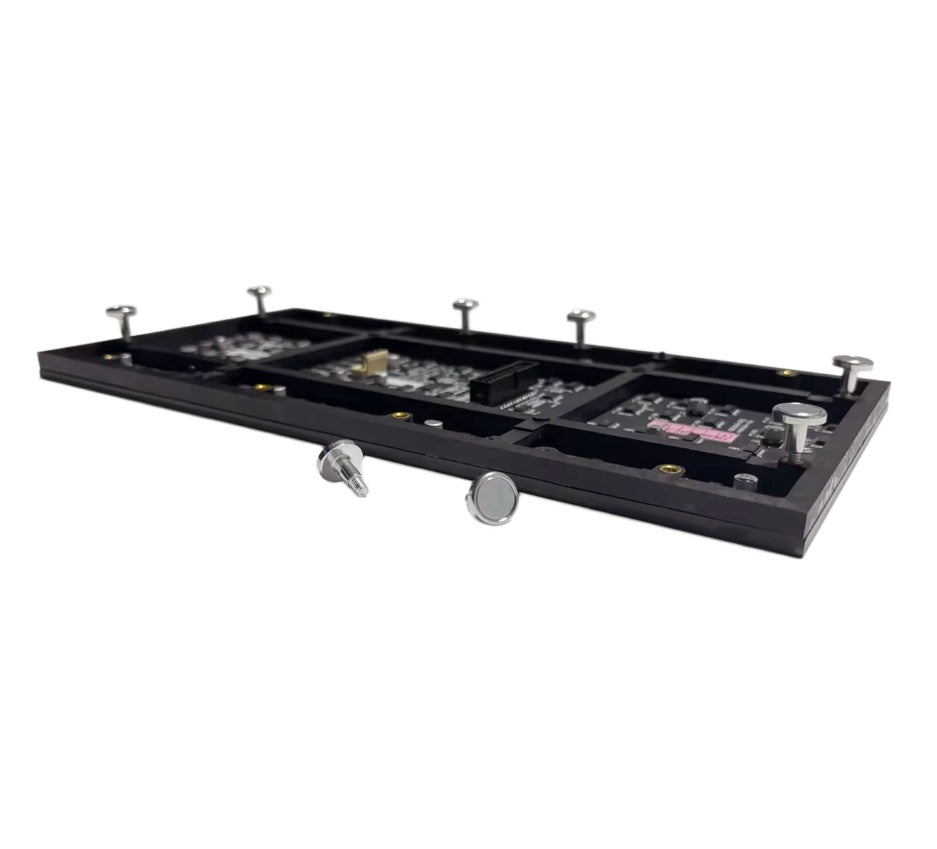

- Easy Front Maintenance – Magnetic front service; HUB320 data interface. Requires receiving card, sending card, control software, and suitable power supply.

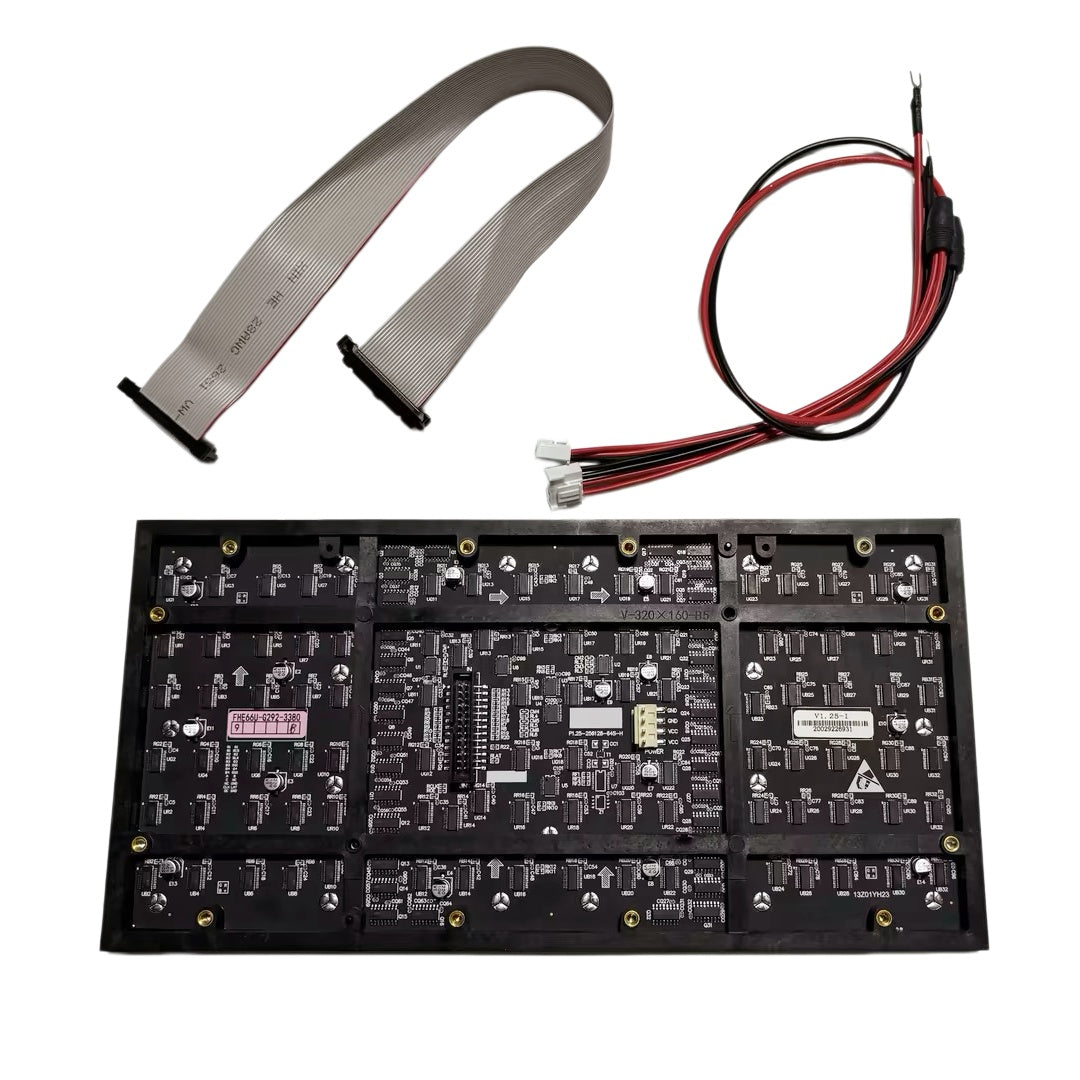

Package Included
| Version | Package Included |
| 1pc Pack | 1x P1.25 LED Module 1x 5V Power Cable 1-to-2 Split 1x Flat Data Cable |
| 40pcs Pack | 40x LED Matrix Module 20x 5V Power Cable 1-to-2 Split 40x Flat Data Cable |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
Protection & Design Features
- Indoor Series – surface is shock-proof, dust-proof, protects LEDs from damage.
- Flexible module options for creative curved or cylindrical displays.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity for power/data connections.
- Avoid bending or twisting the PCB beyond rated tolerance (for flexible models).
- Use compatible receiving card, sending card, software, and DC 5V power supply.
Technical Specifications
| Specification | Details |
| Module size | 320 × 160 mm |
| Pixel pitch | 1.25 mm |
| LED type | SMD1010 |
| Brightness | ≥600 nits |
| Scan rate | 1/64 |
| Viewing angle | H:160° / V:160° |
| Input voltage | DC 5V |
| Weight | TBD |
Applications
- Indoor: Retail shops, conference rooms, exhibitions, broadcast studios.
- Creative: Curved displays, cylindrical screens, artistic installations.
