Description

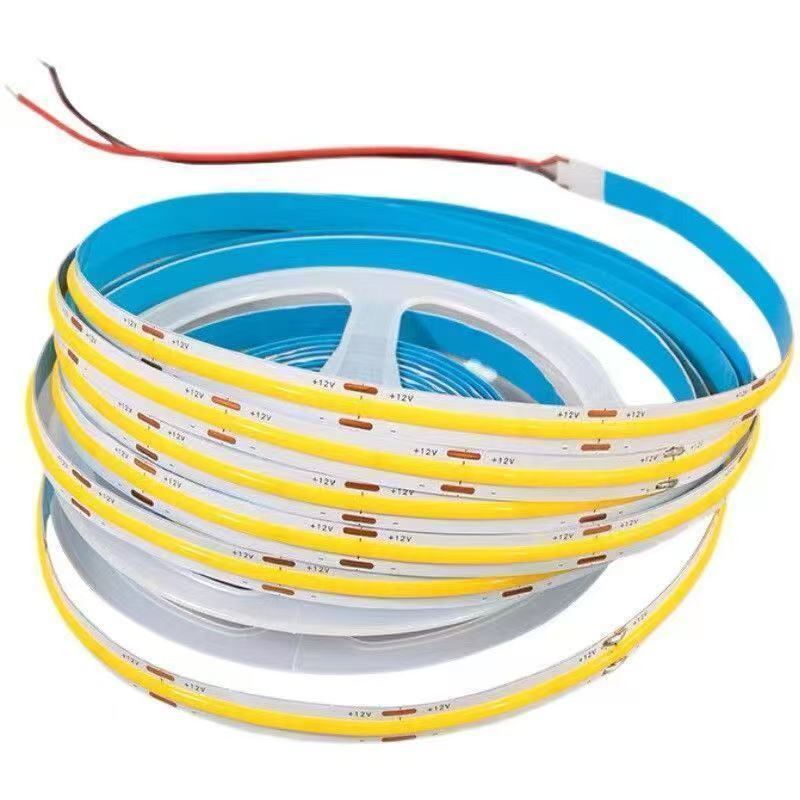

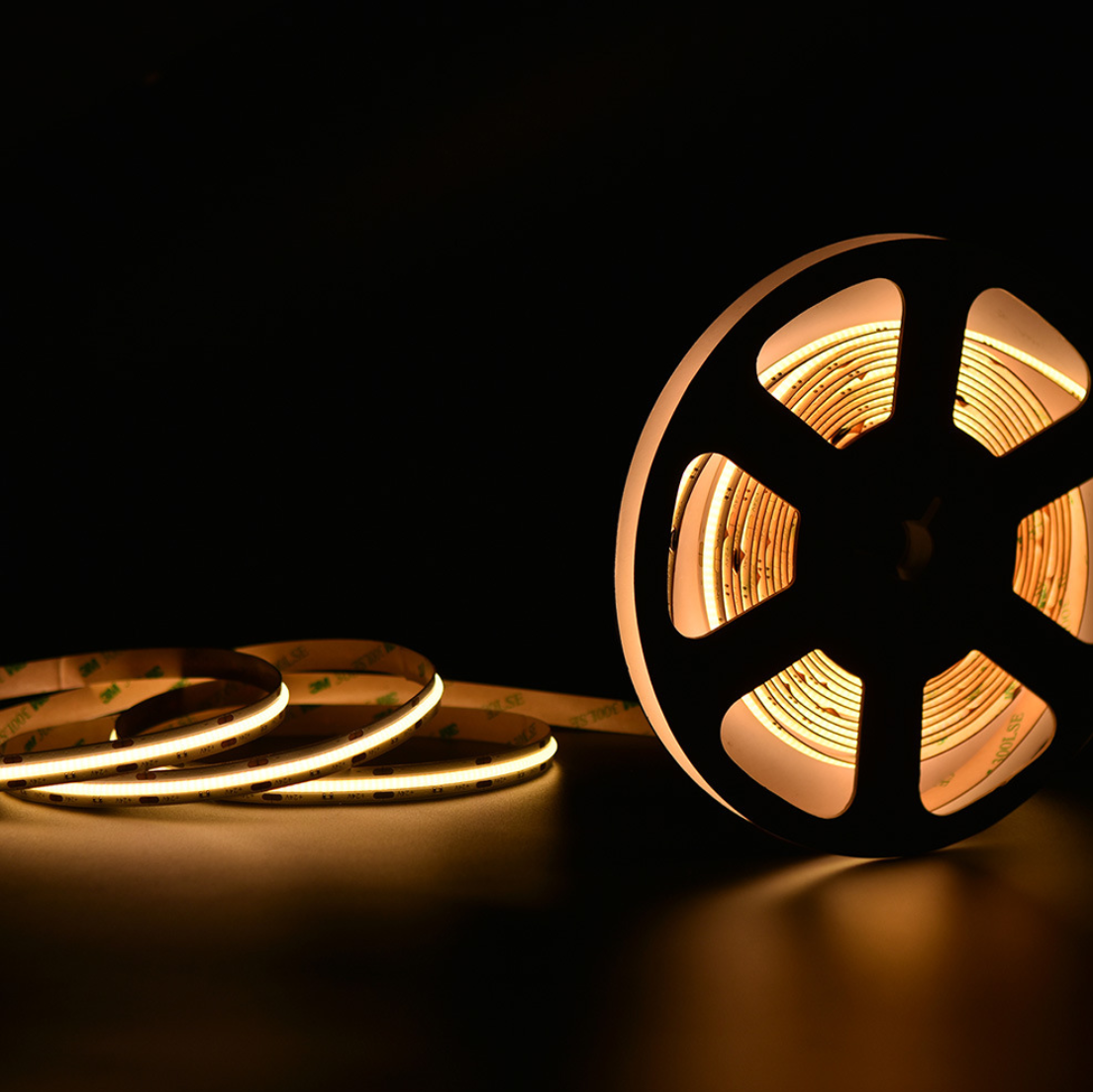

FCOB Flexible LED Strip Light | 5m (16.4ft) Roll | CRI90 | 3000K / 4000K / 6500K | 320 / 480 LEDs per Meter | 8W / 10W | 12V / 24V | 8mm Wide | Dimmable Indoor IP00 LED Ribbon
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 100 Rolls × 5 m (1640 ft total) (Strip Only) | 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
Order & Logistics:
- Lead Time: Typically 1–3 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Features:
-
High CRI90 Lighting – Delivers natural, true-to-life color rendering for professional indoor lighting projects.
-
Multiple Density Options – Choose from 320 LEDs/m (8W), 384 LEDs/m (10W), depending on brightness requirements.
-

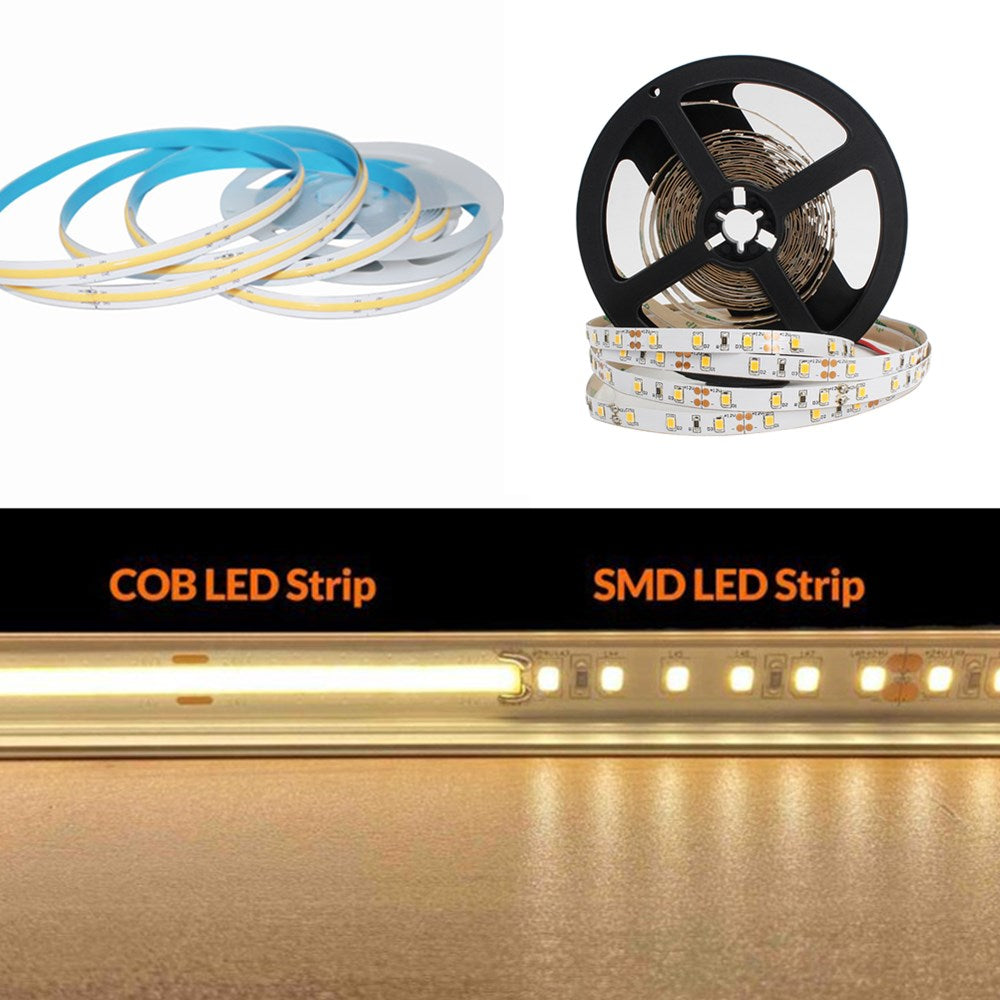

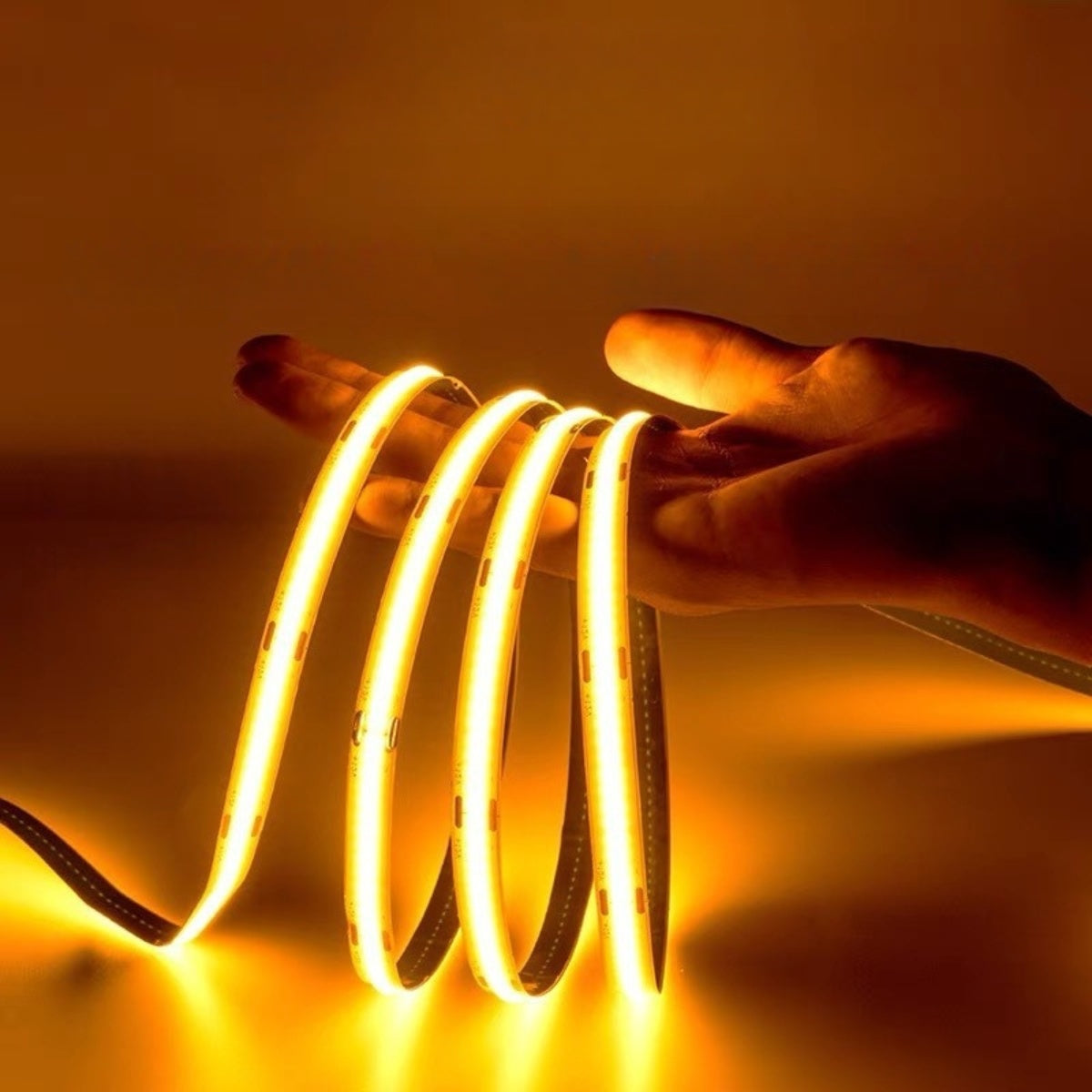

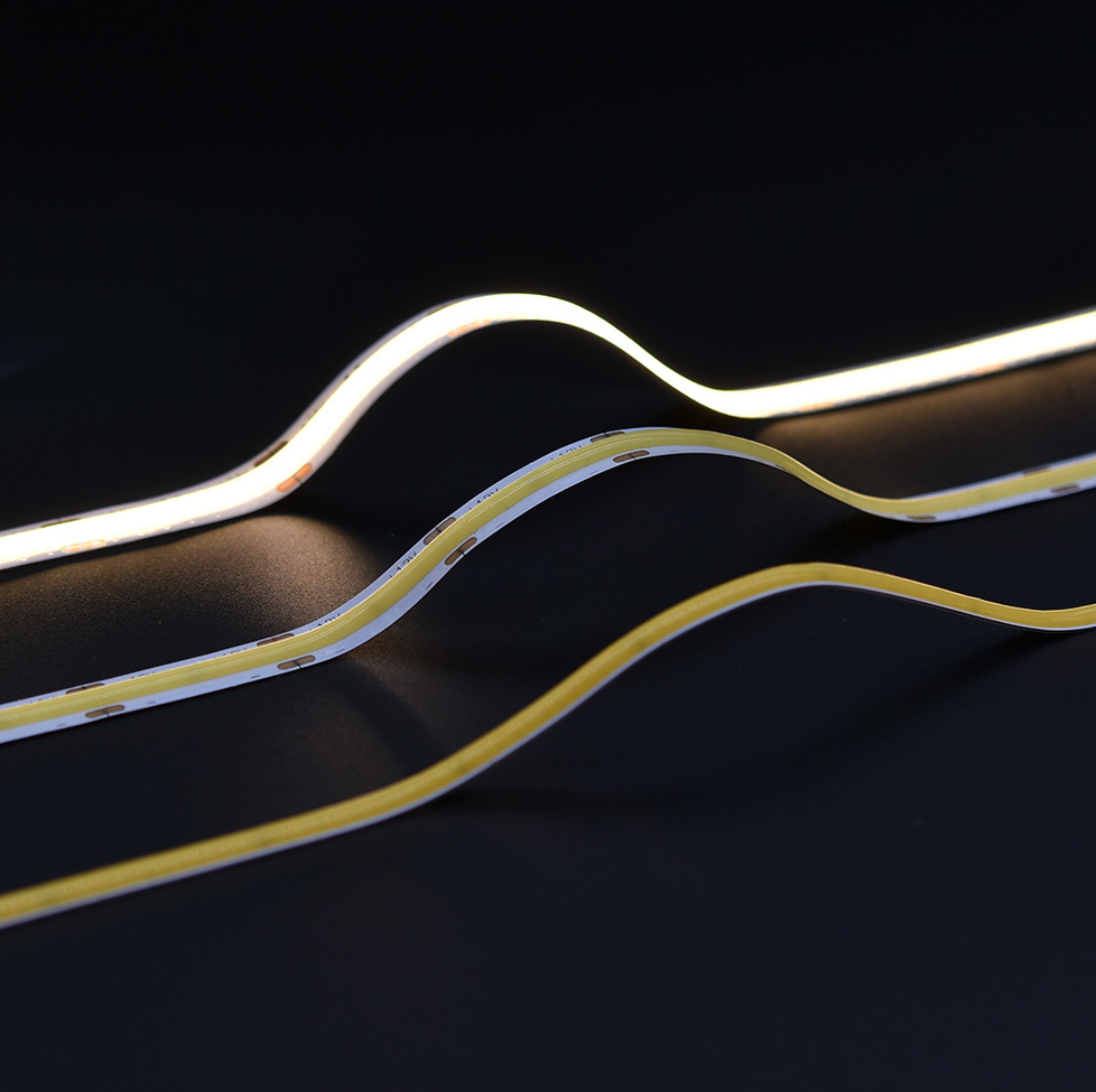

Flexible & Uniform Glow – FCOB technology provides continuous, dot-free illumination along the strip for smooth linear lighting.
-
Customizable Voltage – Supports both 12V and 24V DC systems for versatile installations.
-

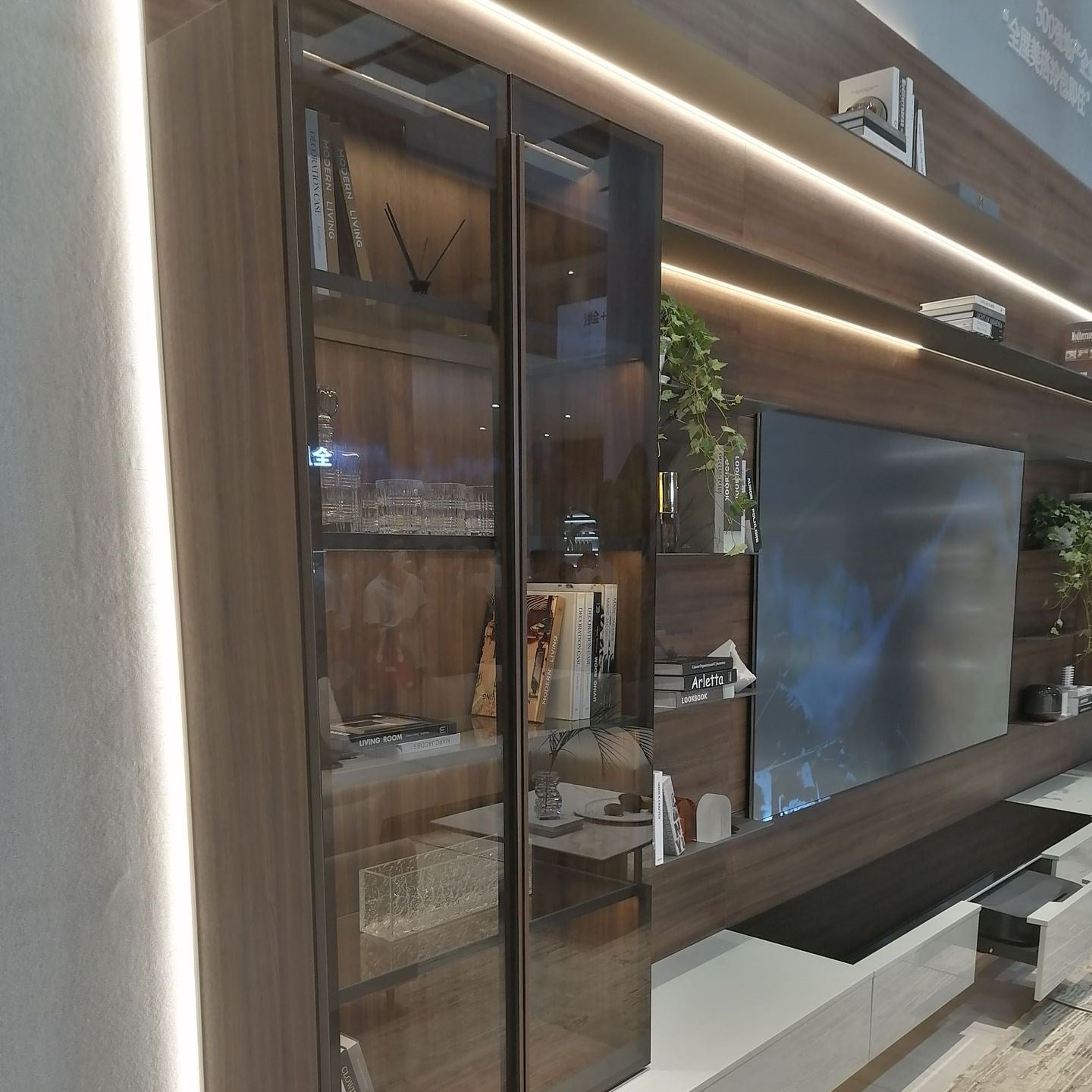

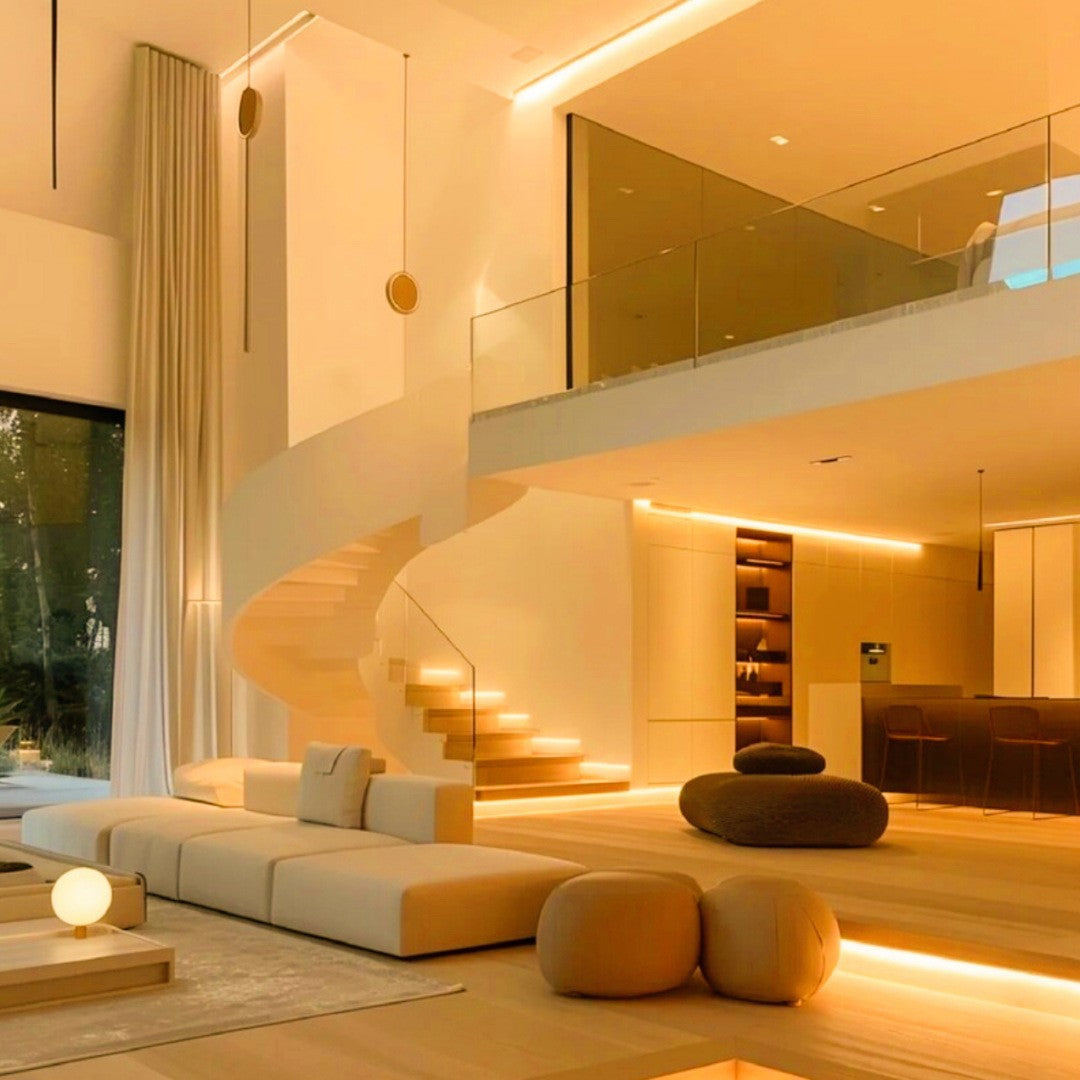

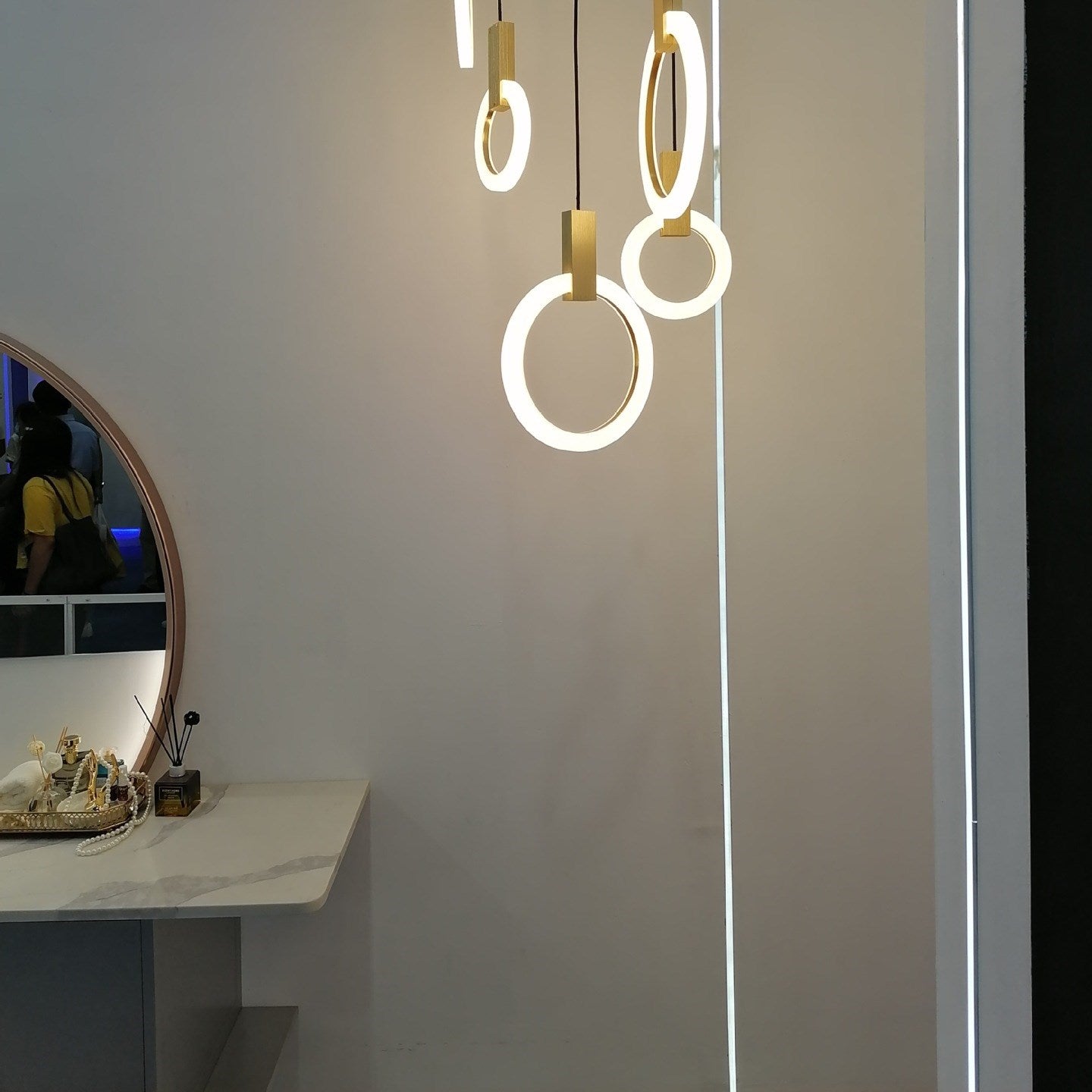

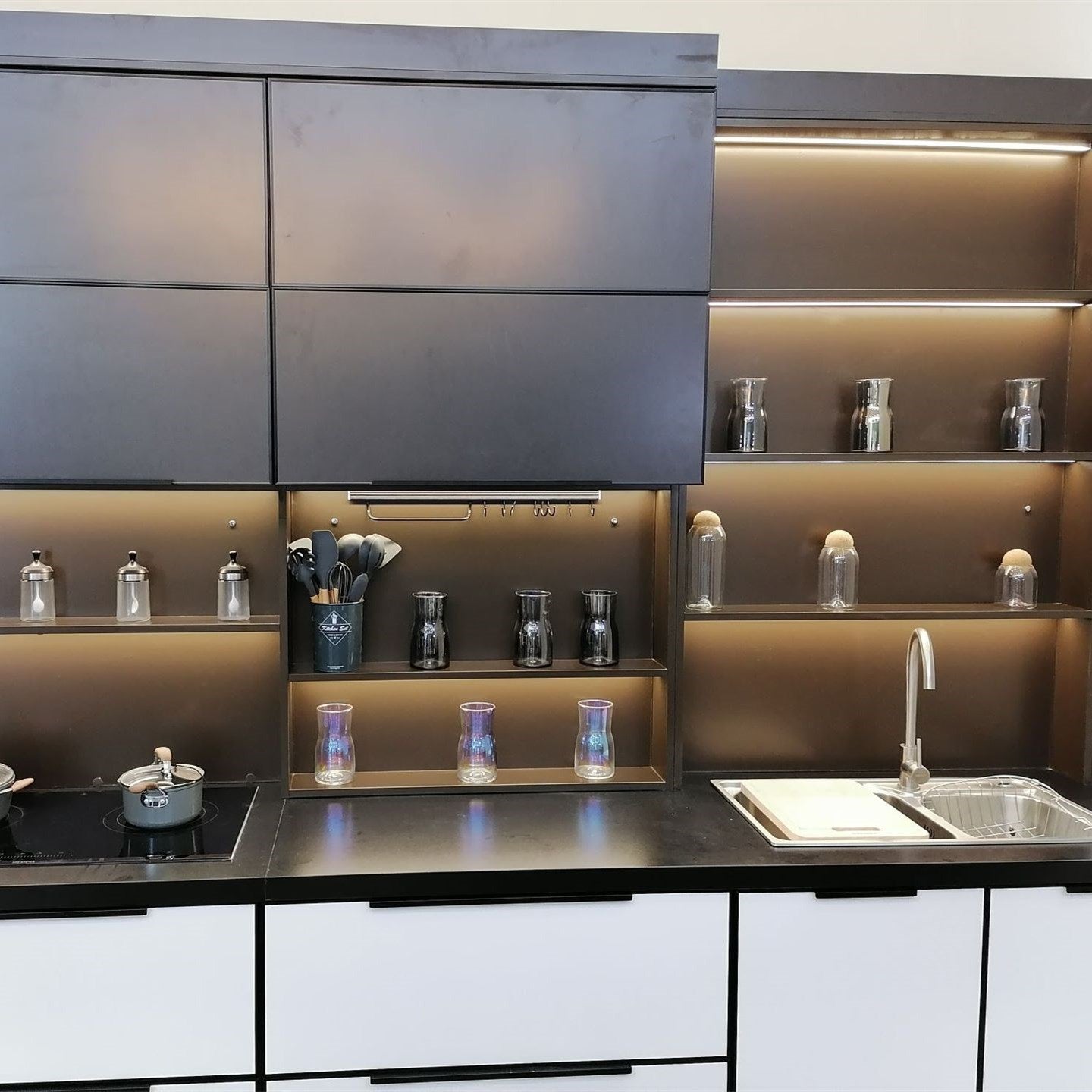

Indoor Applications – Non-waterproof IP00 design ideal for cabinets, shelves, signage, and architectural accents.
Specification
| Specification | Details |
| Product Name | FCOB Flexible LED Strip Light |
| Length per Roll | 5m (16.4 ft) |
| LED Type | FCOB (Flip Chip-on-Board) |
| Color Options | 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White) |
| CRI | ≥90 |
| LED Density | 320 LEDs/m (8W/m) /480 LEDs/m (10W/m) |
| Input Voltage | 12V DC / 24V DC |
| Power Consumption | 8W/m, 10W/m depending on LED density |
| PCB Width | 8mm |

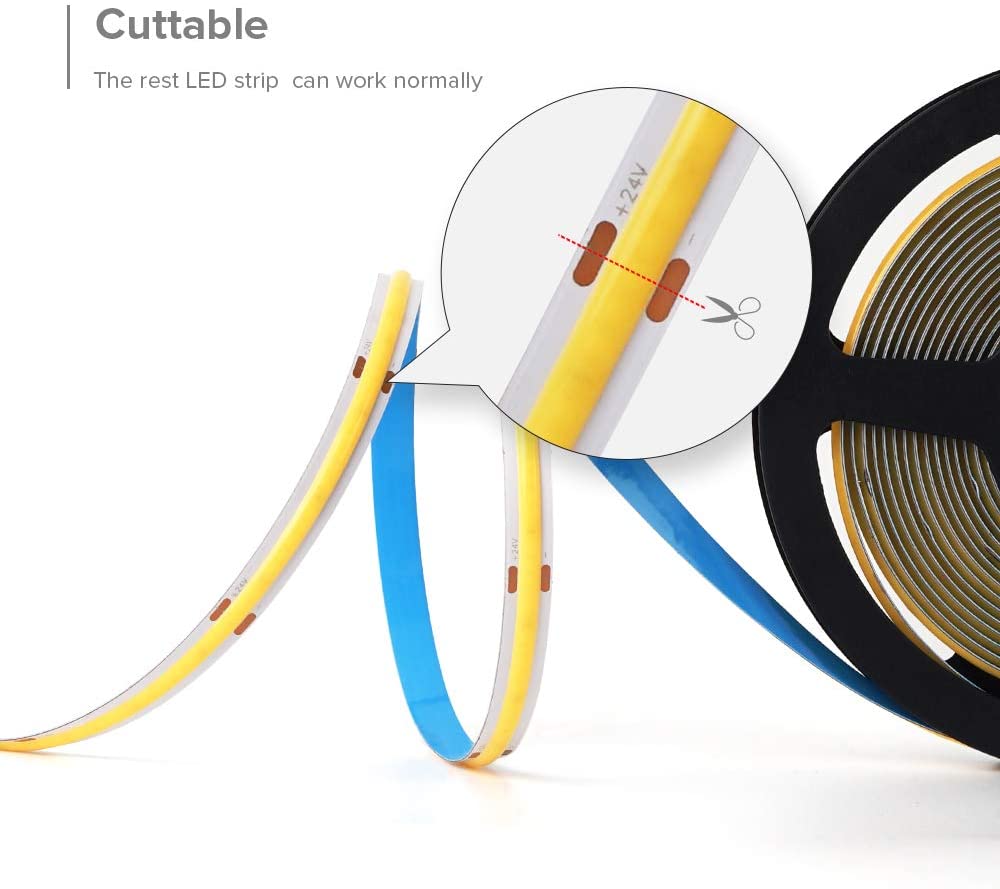

| Cut Section | 50mm (2'') |
| Dimmable | Yes |
| Waterproof Rating | Non-Waterproof, IP00 |
| Package Options | 1 Roll × 5m / 20 Rolls × 5m / 100 Rolls × 5m |

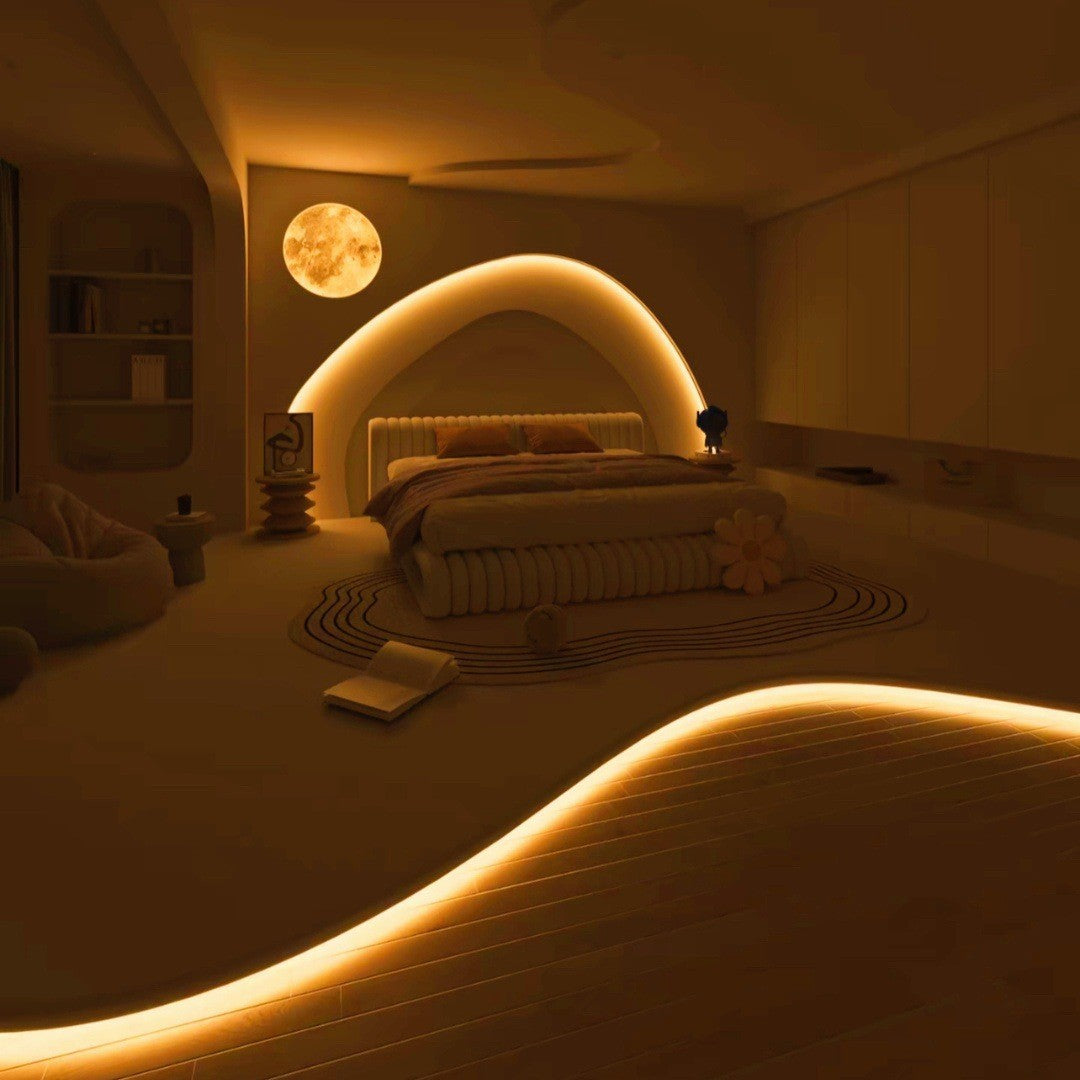

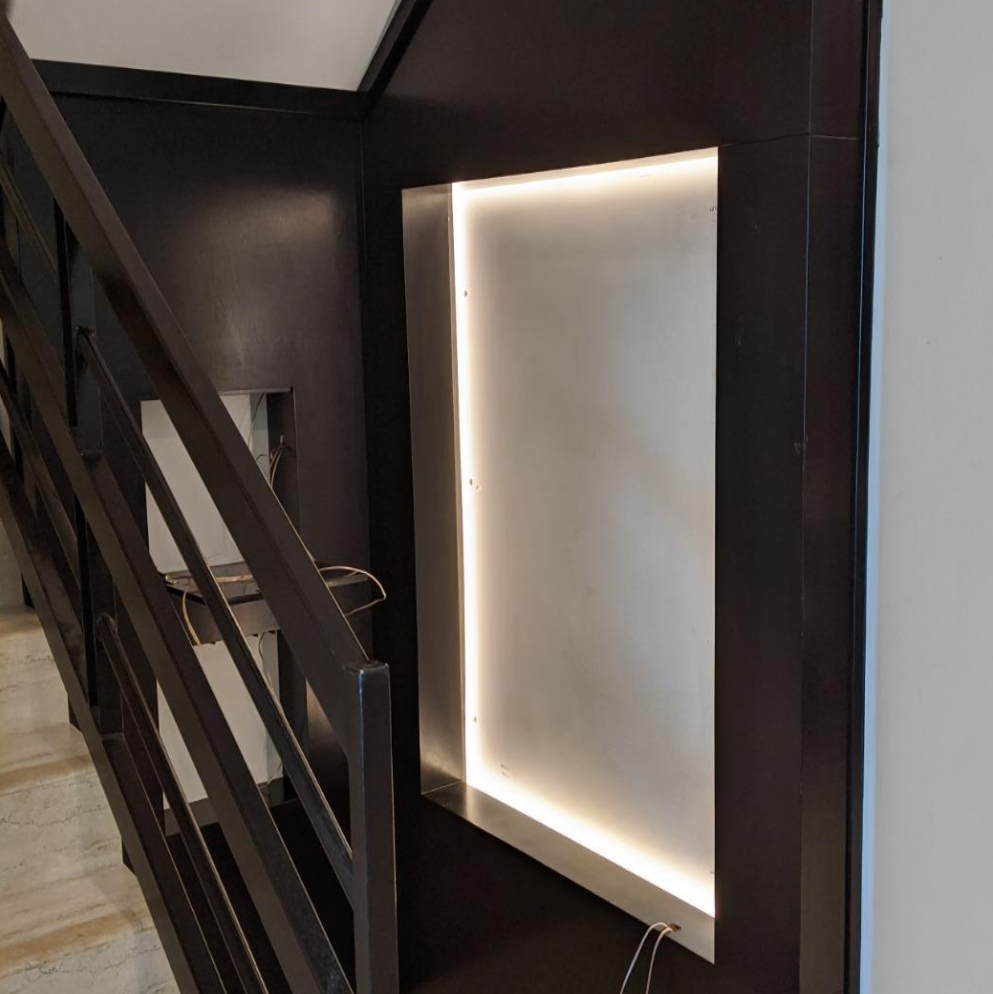

| Applications | Indoor accent lighting, shelves, furniture, signage, architectural use |
Power Wiring Methods:
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safety.
And a big power transformer do no harm to the strip but good for safety.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
