Description
Wavelength : 380nm-385nm
Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
IP Grade avaliable : Non-Waterproof , IP65 Waterproof , IP67 Waterproof , IP68 Waterproof
380nm-385nm SMD2835-300 12V DC <60W, 5Amp UV (Ultraviolet) LED Strip Light Non-Waterproof Flexible White PCB Strip Light Ideal for UV Curing, Currency Validation, Mosquito killer, Fluorescence disclosing and Medical Field
Note: Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
Available Lengths and Suggested Power Supply to power (the power supply is not included)
| Length | Wattage (w) | Suggested Power Supply |
| 50cm |
6 |
12V, 0.5Amp, 6W |
| 100cm |
12 |
12V, 1.0Amp, 12W |
| 200cm |
24 |
12V, 2.0Amp, 24W |
| 300cm |
36 |
12V, 3.0Amp, 36W |
| 400cm | 48 | 12V, 4.0Amp, 48W |
| 500cm |
60 |
12V, 5.0Amp, 60W |
To use bigger power supply than rated power of the strip is to avoid full loaded working, which is better for the lifespan of the Power Supply.
Strip Light Specification for 5 Meter Roll

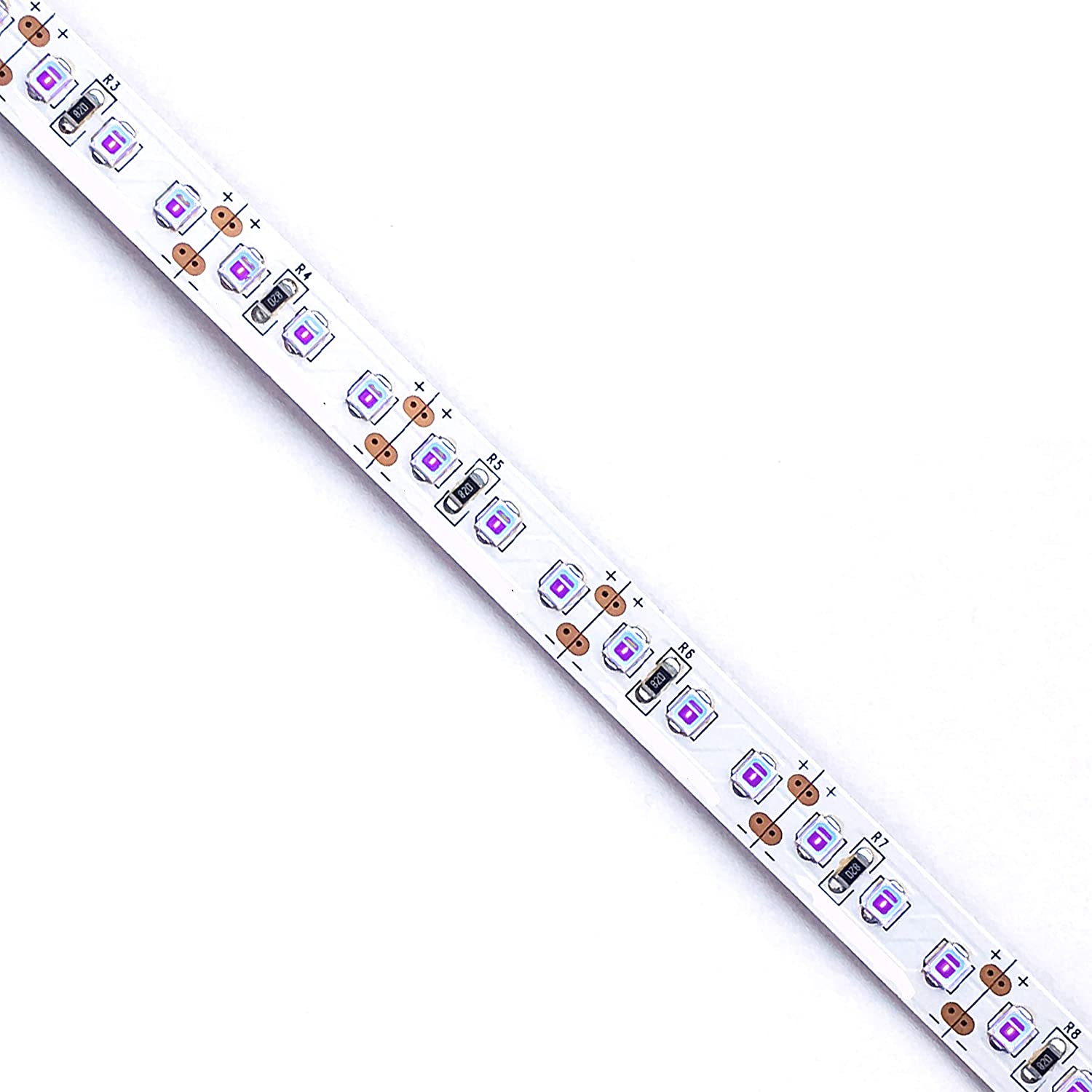

LED Type: UV SMD2835
LED QTY.: 60LED/Meter
Input Voltage: 12V DC
Wattage (max): 6Watt/Meter

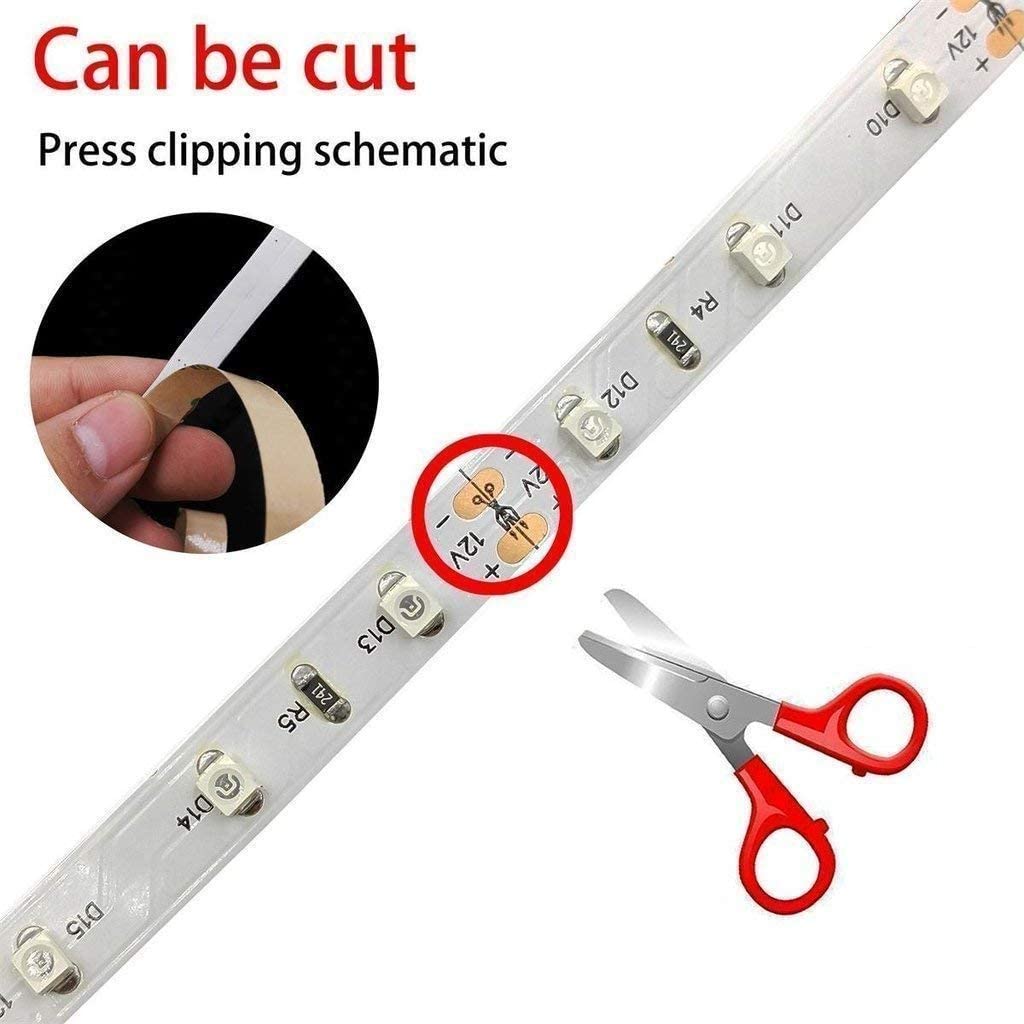

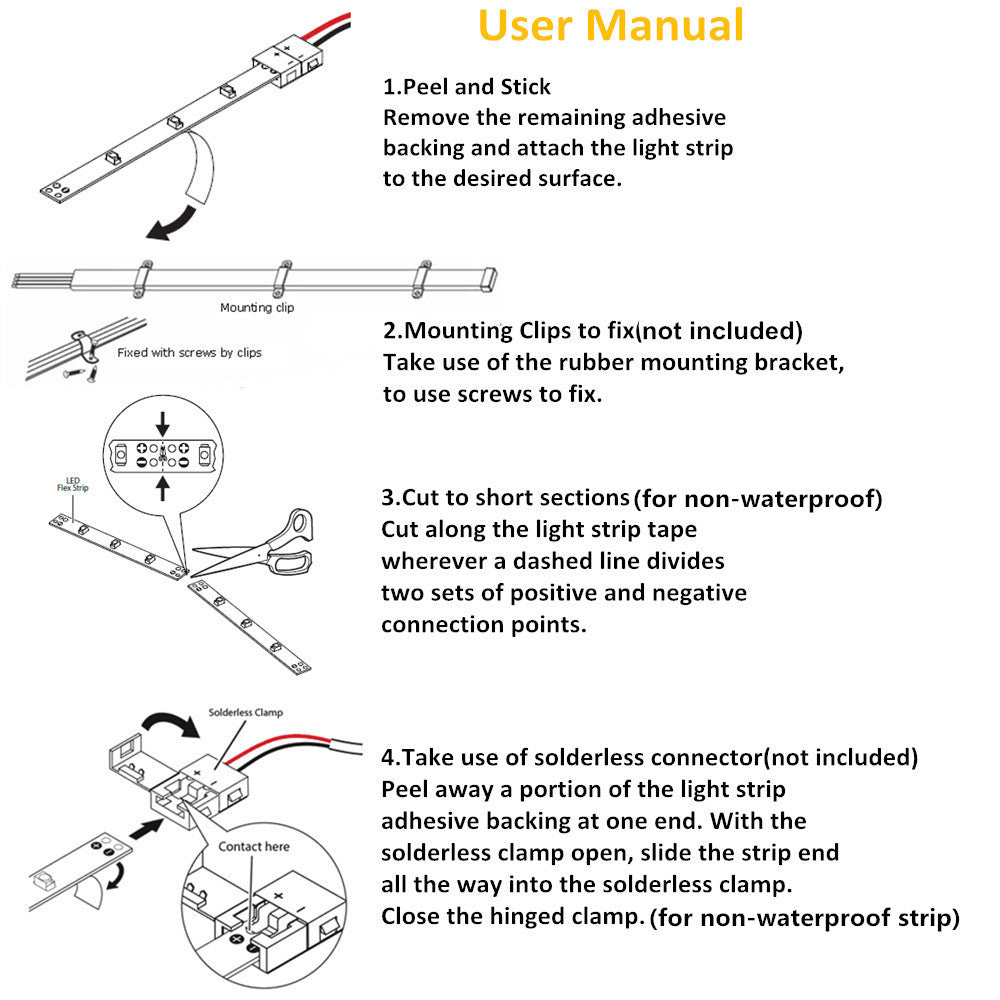

Cuttable: Every 3LED per 2'' can be cut
Size(W*H/mm): 8*2
Weight: 0.15kgs per 5meter per roll

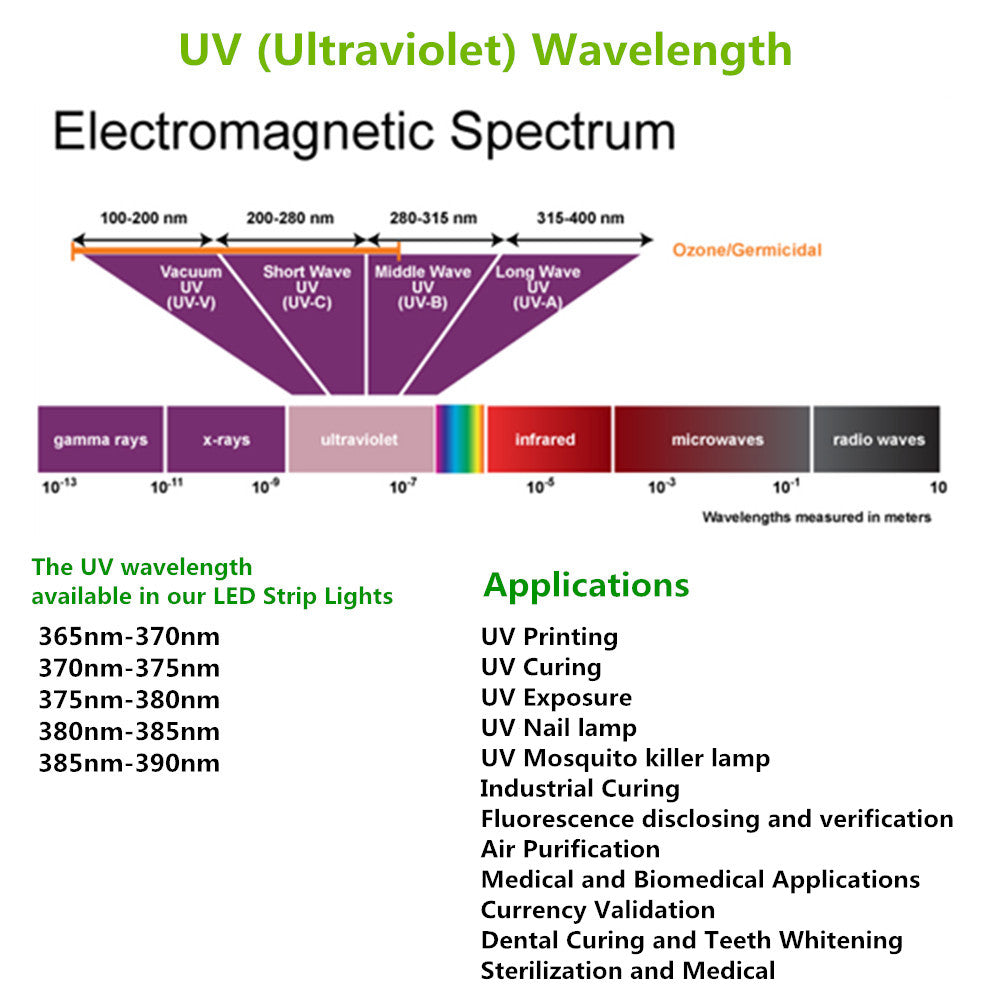

Wavelenght: 380nm-385nm
PCB Background color: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use)

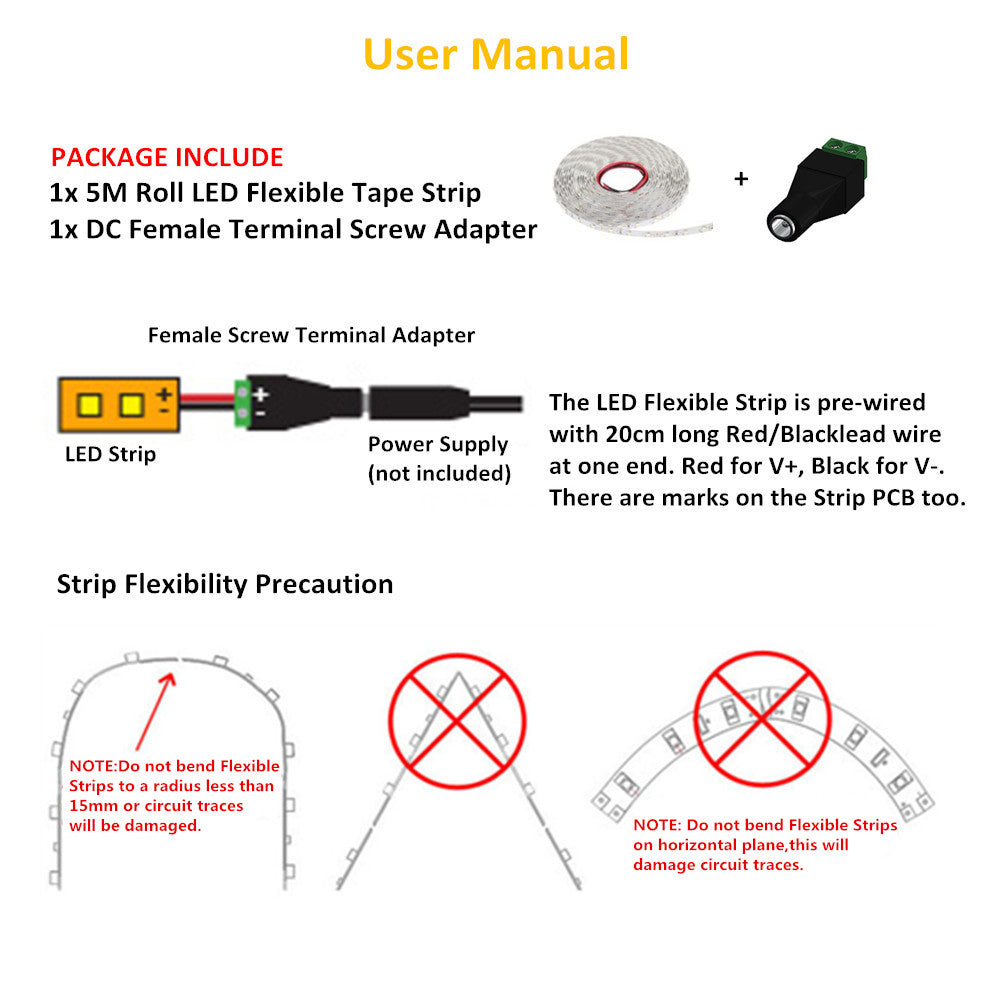

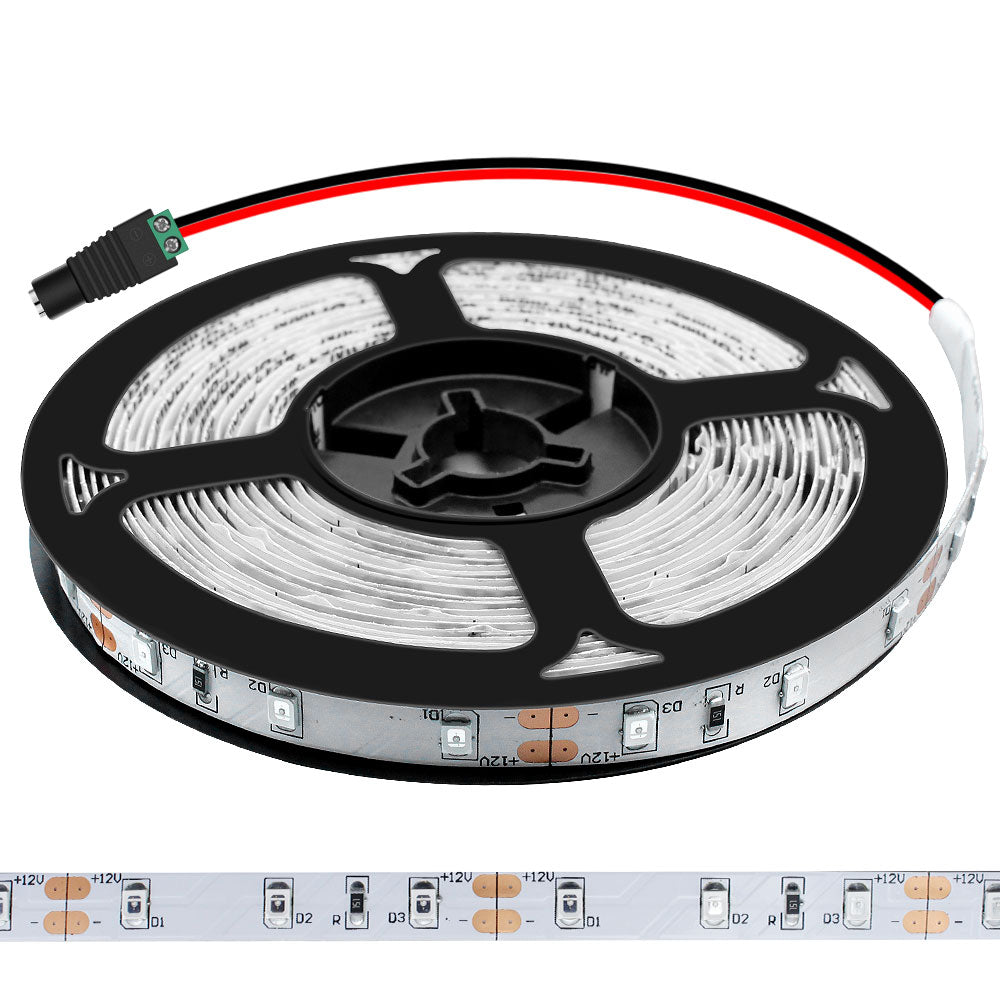

Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
UV LED Lights Application
