Description

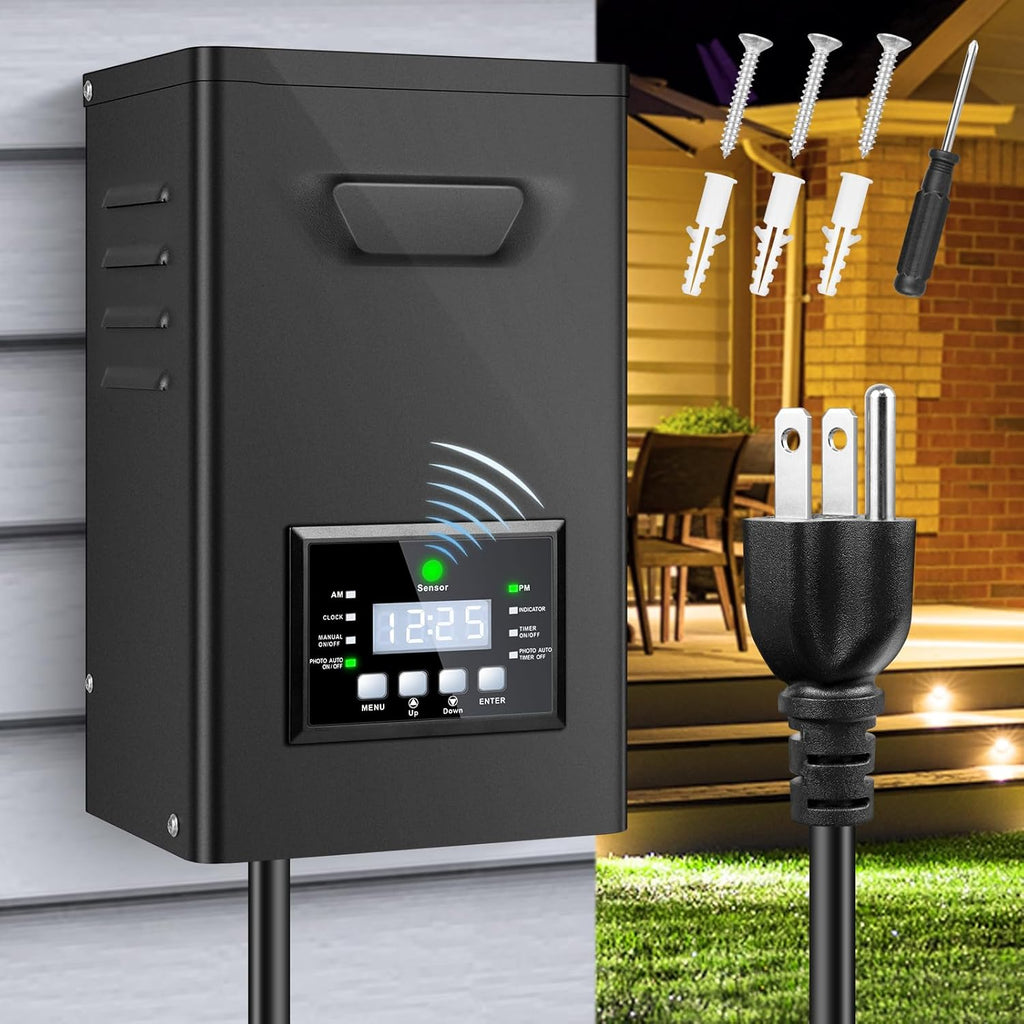

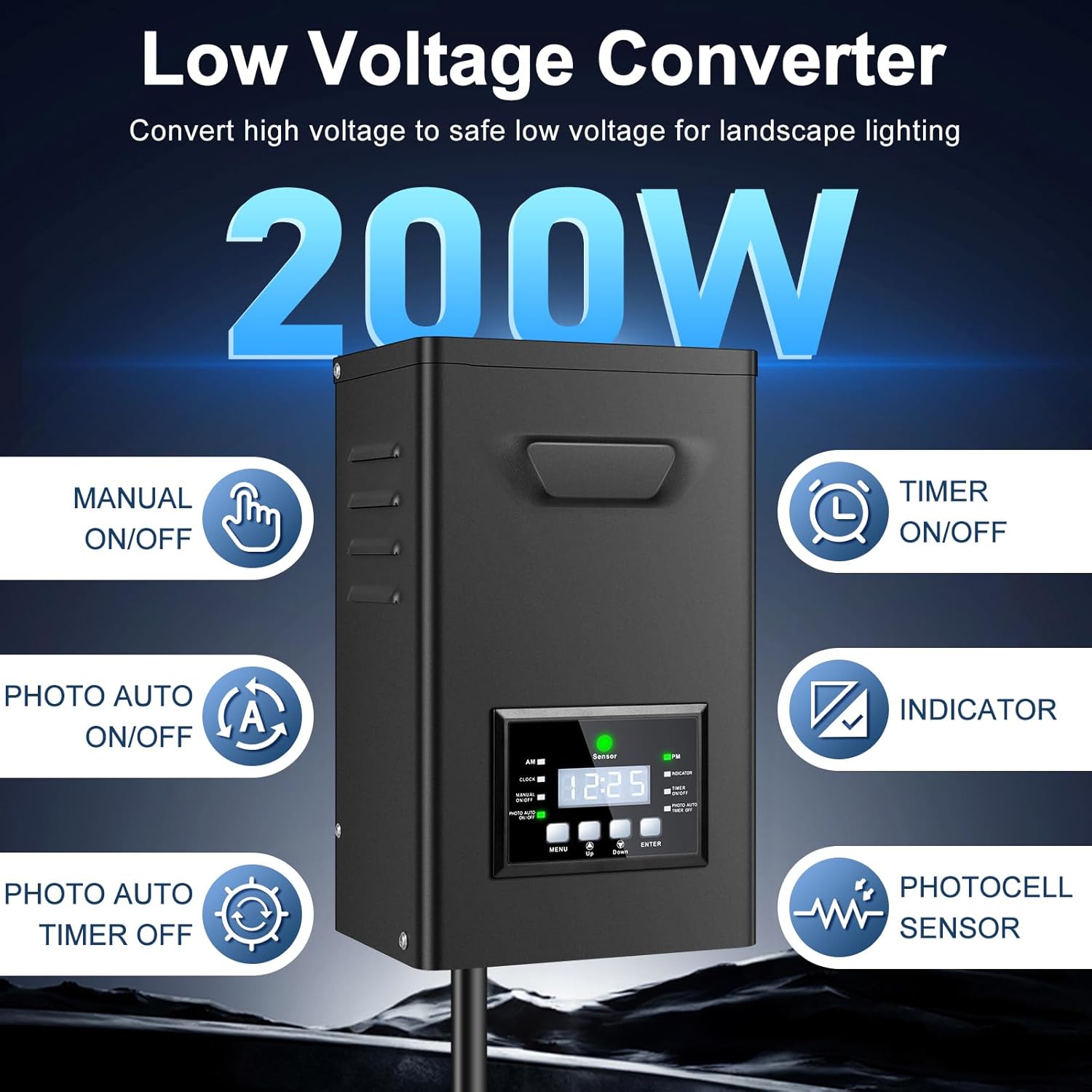

200W / 250W Outdoor Low Voltage Lighting Transformer, Weatherproof 120V AC to 12V/15V AC Power Supply with Timer & Photocell for Yard & Garden Lights
Package Included
| Version | Package Included |
| 200W Transformer | 1 × 200W Low Voltage Landscape Transformer Installation screws User manual |
| 250W Transformer | 1 × 250W Low Voltage Landscape Transformer Installation screws User manual |
About this item
- Outdoor-rated low-voltage transformer for landscape and garden lighting.
- INPUT: 120V AC 60Hz; OUTPUT: 12V AC / 15V AC — stable low-voltage power for LED systems.
- Integrated LCD display for clock, timer and schedule settings.
- Control modes: Manual ON/OFF, Photocell Auto ON/OFF (dusk-to-dawn), Programmable Timer, Countdown, Test.

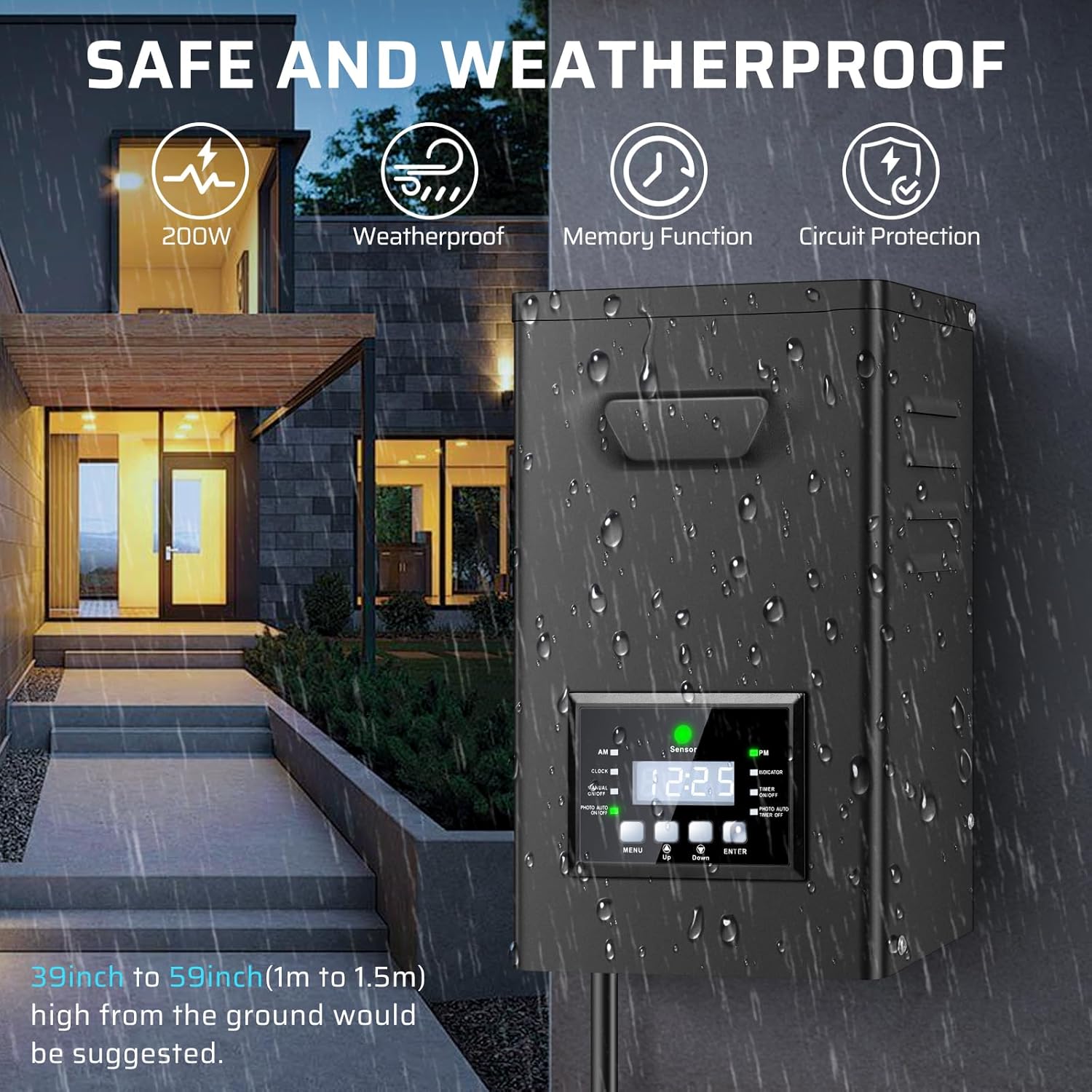

- Weatherproof metal housing (304 stainless steel shell) designed for long-term outdoor use.

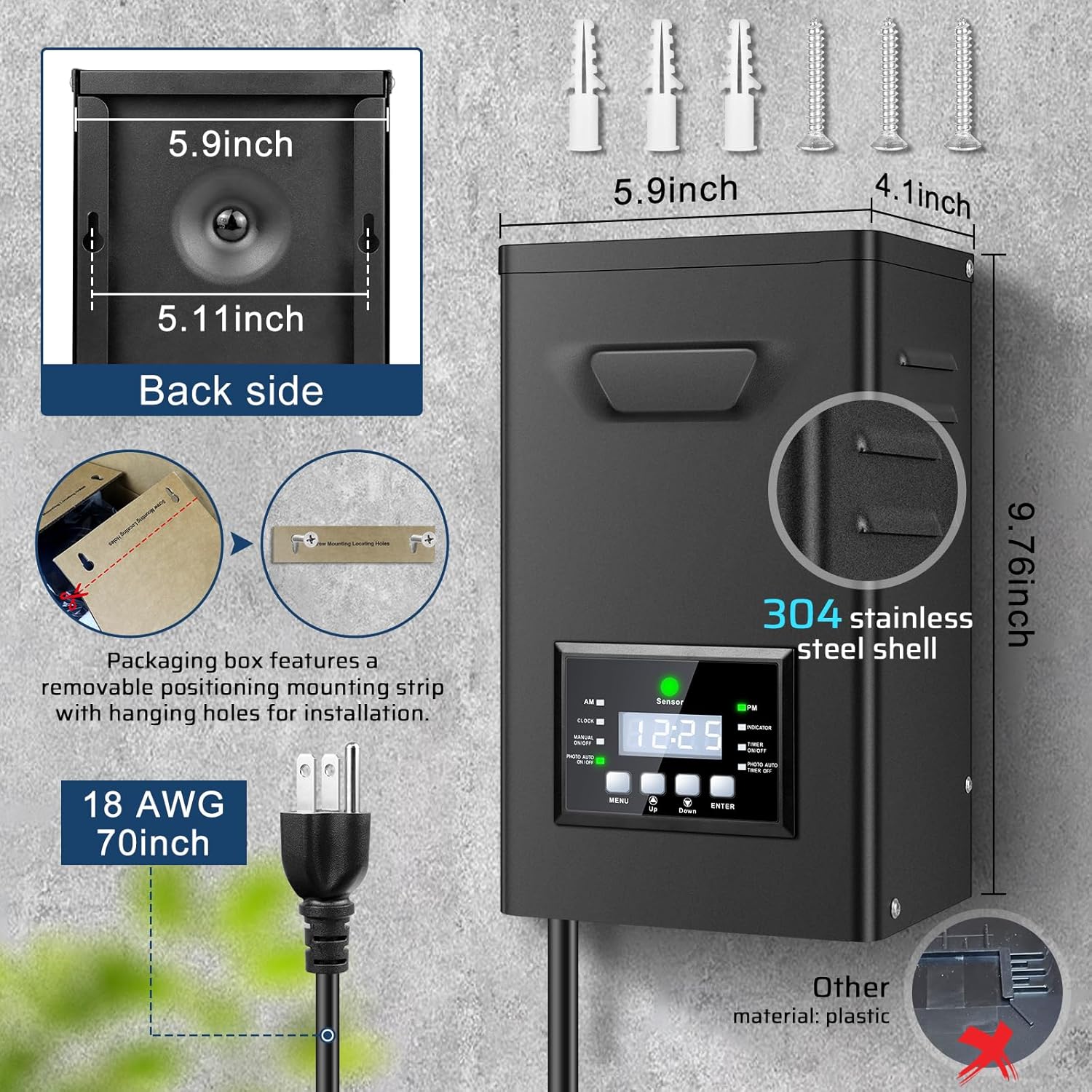

- Dual output ports for connecting multiple fixtures; 6.5 ft (≈2 m) 18AWG heavy-duty input cord.
- Safety features: Overload and short-circuit protection; power-off memory restores previous working mode.
Order & Logistics
| Item | Details |
| Lead Time | Ships within 1–3 business days. |
| Packing | Cardboard box. |
| Shipping | Ships from US warehouse (3–7 days delivery). This product line is dedicated to the US market. |
Key Specifications
- Input Voltage: 120V AC, 60Hz (US plug), 6.5 ft / ~2 m 18AWG cord
- Output Voltage: 12V AC / 15V AC
- Max Power Options: 200W or 250W
- Output Ports: 2
- Control Modes: Manual, Photocell (dusk-to-dawn), Timer, Countdown, Test
- Display: LCD digital panel with clock and indicators
- Housing: 304 stainless steel, weatherproof outdoor design
- Safety: Overload & short-circuit protection; power-off memory

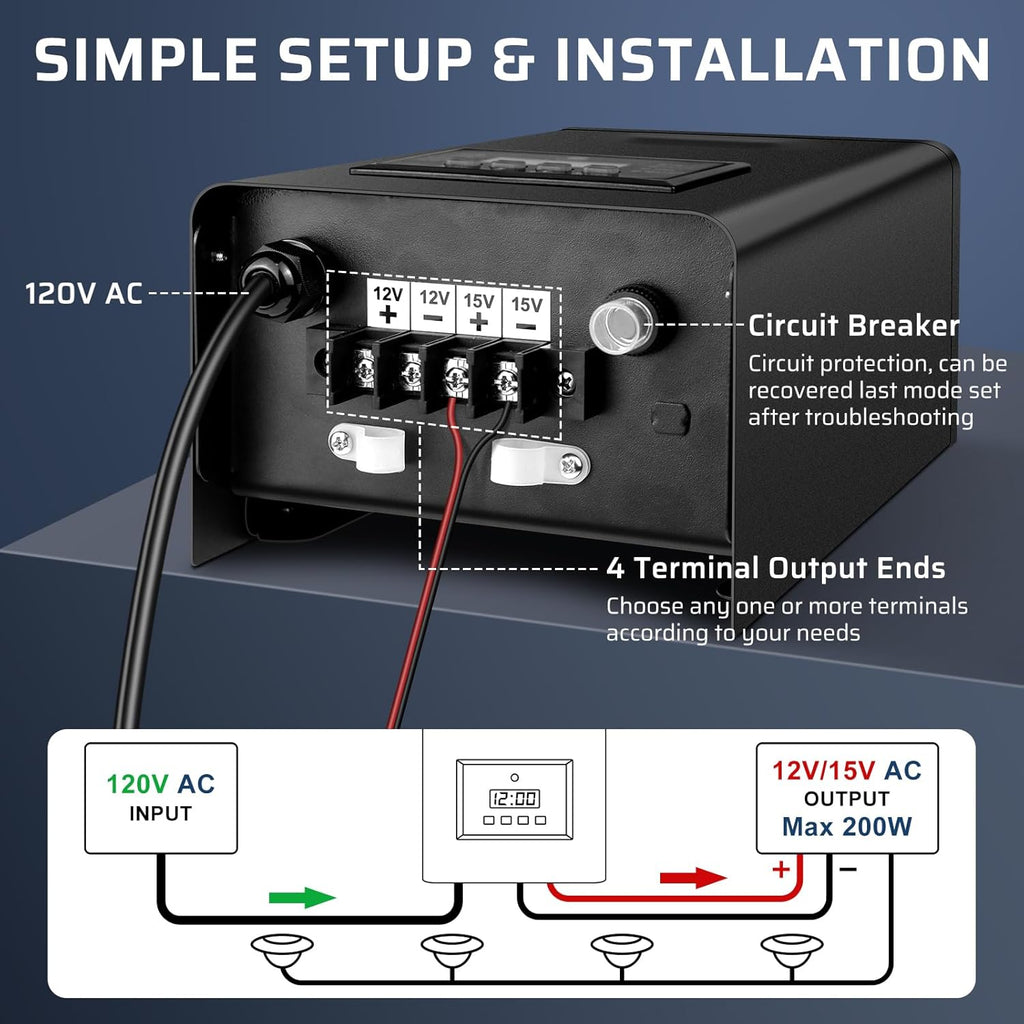

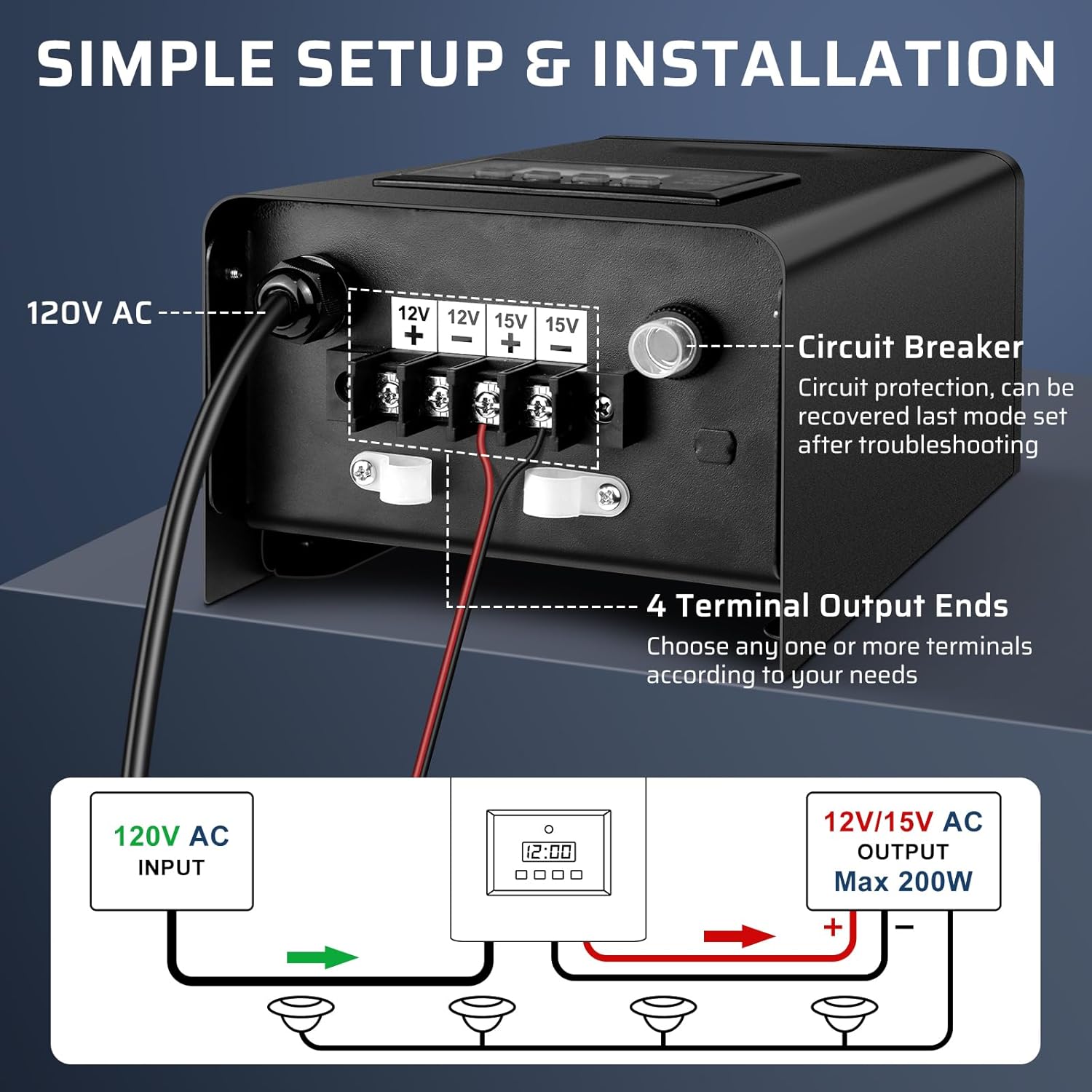

Usage Notes / Installation Tips
- Install at least 12 inches above ground level; keep area ventilated and dry.
- Do not use with dimmers. Disconnect power before installation or wiring changes.
- For best performance, keep total load ≤ 80–90% of rated wattage and balance across two output ports.
- Long cable runs and smaller wire gauges increase voltage drop—use appropriate wire size.
- Ensure the photocell sensor is not blocked by nearby light sources.
- Warm tip: In Manual mode, the transformer must be switched on again after a power outage.
Downloads
Technical Specifications
| Parameter | Details |
| Input Voltage | 120V AC, 60Hz |
| Input Cable | 6.5 ft (≈2 m), 18AWG, US plug |
| Output Voltage | 12V AC / 15V AC |
| Max Wattage | 200W or 250W (per version) |
| Output Ports | 2 |
| Display | LCD panel (clock & indicators) |
| Control Modes | Manual / Photocell / Timer / Countdown / Test |
| Housing | 304 stainless steel, weatherproof |
| Protection | Overload, short-circuit |
| Memory Function | Yes (restores previous working mode after power returns) |
| Operating Temperature | −20 °C to +45 °C |
Applications
- Garden and pathway lights
- Landscape spotlights and wall washers
- Outdoor decorative and holiday lighting
- Residential or commercial low-voltage lighting systems
You may also like
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
a

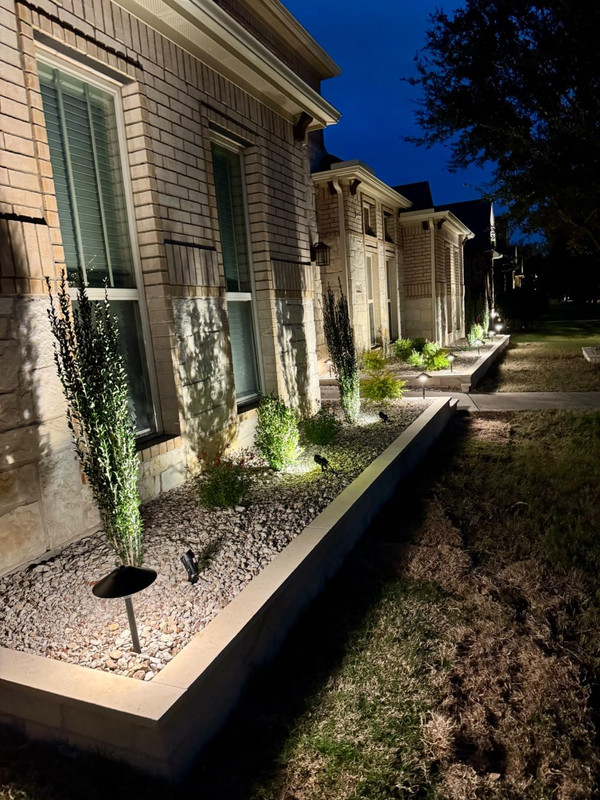

Easy to mount, good connections with stainless steel terminals, photocell for dusk to dawn works well.
