LED Strip Connectors – 10mm 2Pin Solderless Clips | Strip to Wire / Strip to Strip / DC Adapter / L / T – Bulk Wholesale 500pcs MOQ | Factory Direct

Package Included

Version	Package Included
Strip to Wire Connector	500 × 10mm 2Pin Strip to Wire Connector

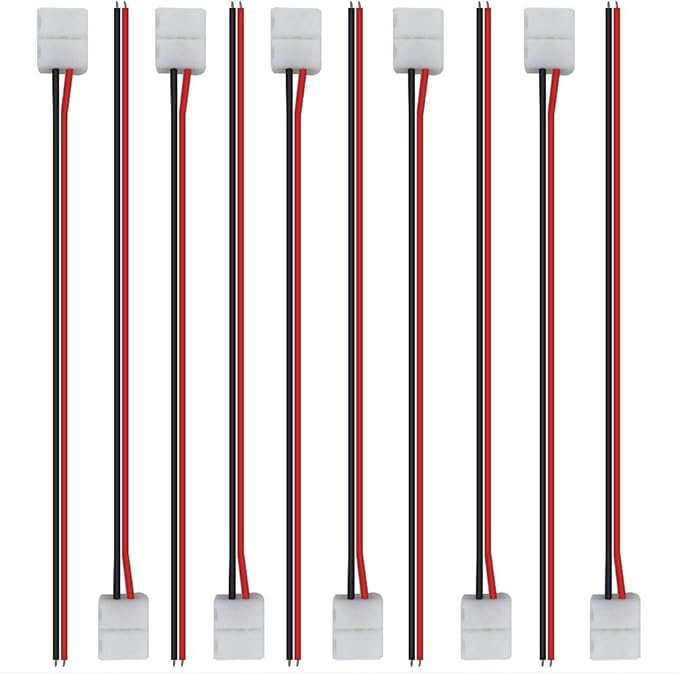

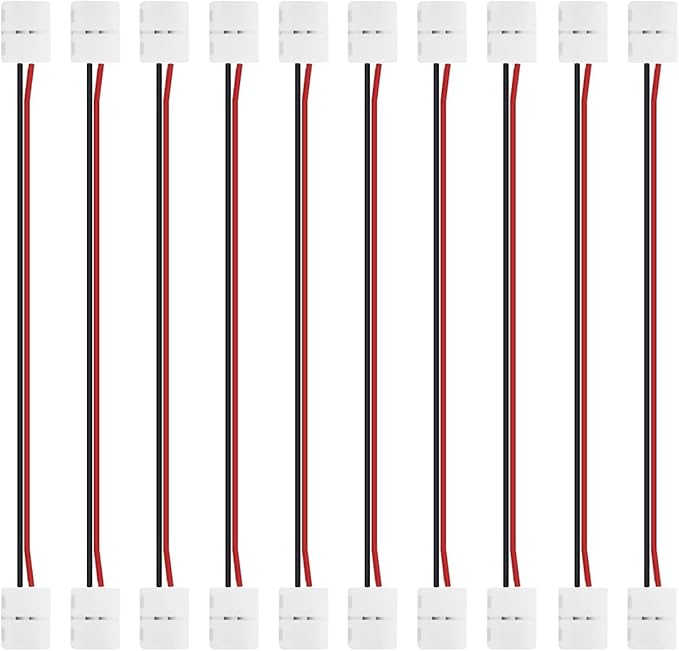

Strip to Strip with Wire	500 × 10mm 2Pin Strip to Strip Connector with 5.9inch wire

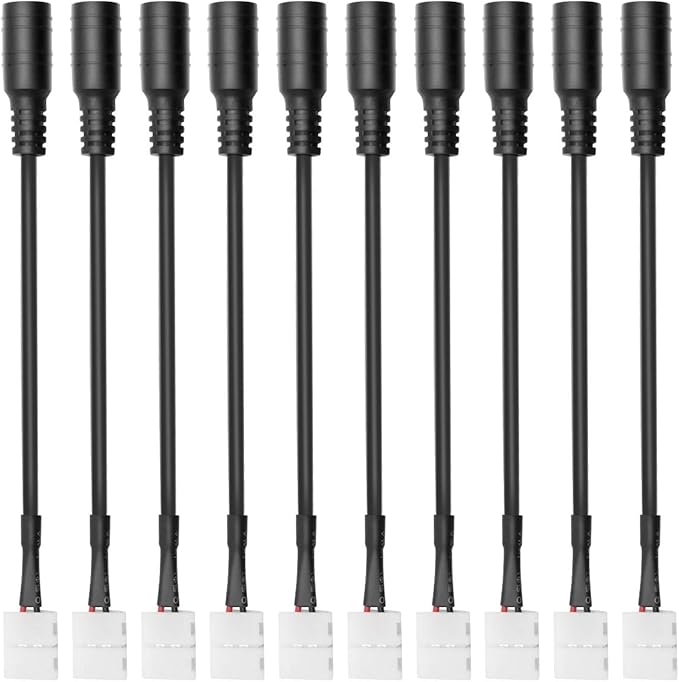

Strip to DC Plug Connector	500 × 10mm 2Pin Strip to DC Plug Connector

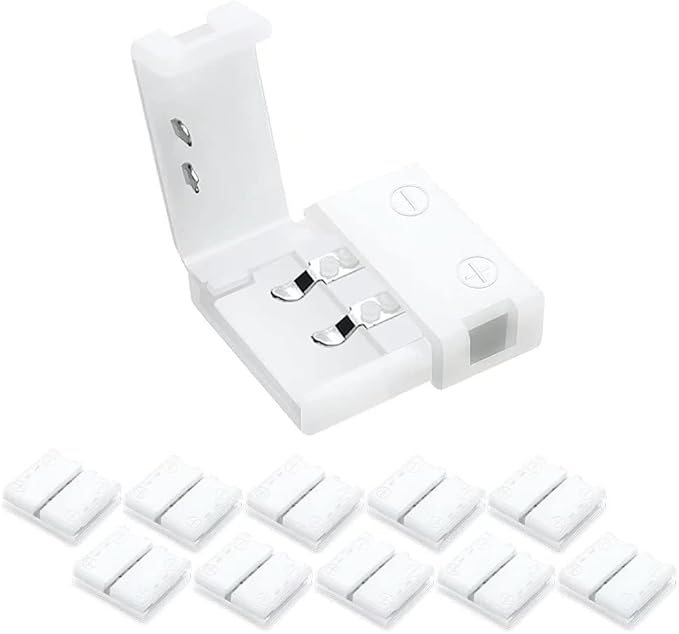

Strip to Strip Connector	500 × 10mm 2Pin Strip to Strip Connector

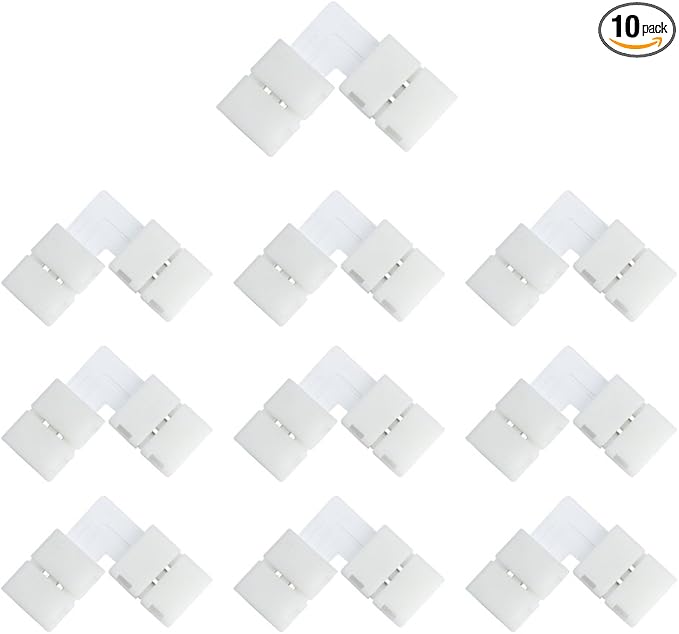

L-Shape Connector	500 × 10mm 2Pin L-Shape Connector

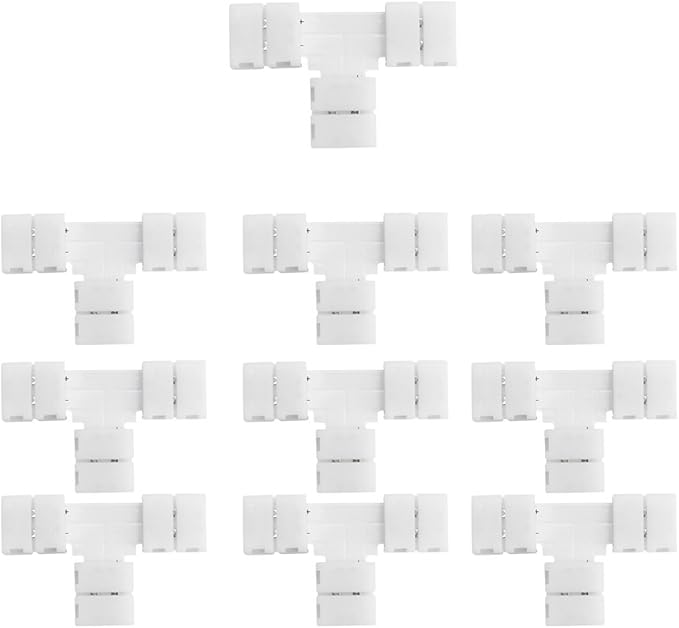

T-Shape Connector	500 × 10mm 2Pin T-Shape Connector

About this item

• 2Pin connector for 10mm wide SMD5050 / 5630 single color LED strip
• Supports up to 4A current and 0–24V DC working voltage
• Heat resistance from 20°C to 100°C
• Strip to strip with 5.9inch wire, solderless quick snap-down installation
• Compatible with waterproof and non-waterproof LED strips (remove silicon around soldering area for waterproof strips)
• Durable metal and plastic housing, lightweight and reusable

Order & Logistics

• Lead Time: Ships within 1–3 business days
• Packing: Cardboard box, sealed with polybag for small parts
• Shipping: Dispatched from local warehouses (US, UK) with delivery in 3–7 days. In rare cases, shipment may be fulfilled from central warehouse if local stock is unavailable.

Key Specifications

Specification	Value
Input Voltage	up to 24V DC
Current Capacity	up to 4A
Connector Type	2Pin, 10mm solderless clip
Compatible Strips	SMD5050 / 5630 single color LED strips
Versions	Strip to Wire, Strip to Strip with Wire, Strip to Strip, DC Plug, L-Shape, T-Shape
Housing	Plastic + metal
Dimensions	6.5 × 0.57 × 0.2 inches
Protection	Standard secure connection

Usage Notes / Installation Tips

• Ensure polarity alignment before closing the clip
• For waterproof strips, peel off silicon coating to expose solder pads before connecting
• Do not exceed rated voltage or current capacity
• Recommended for indoor use unless further protected

Applications

• LED strip light connections without soldering
• Quick extensions and joints for 10mm single color strips
• DIY lighting projects and small installations
• Indoor decoration, retail displays, and commercial lighting layouts
