Description
Transparent Crystal LED Strip Connectors – 10mm 4Pin Solderless Clips | Strip to Wire / Strip to Strip / Female Plug – Local Stock US/UK
Package Included
| Version | Package Included |

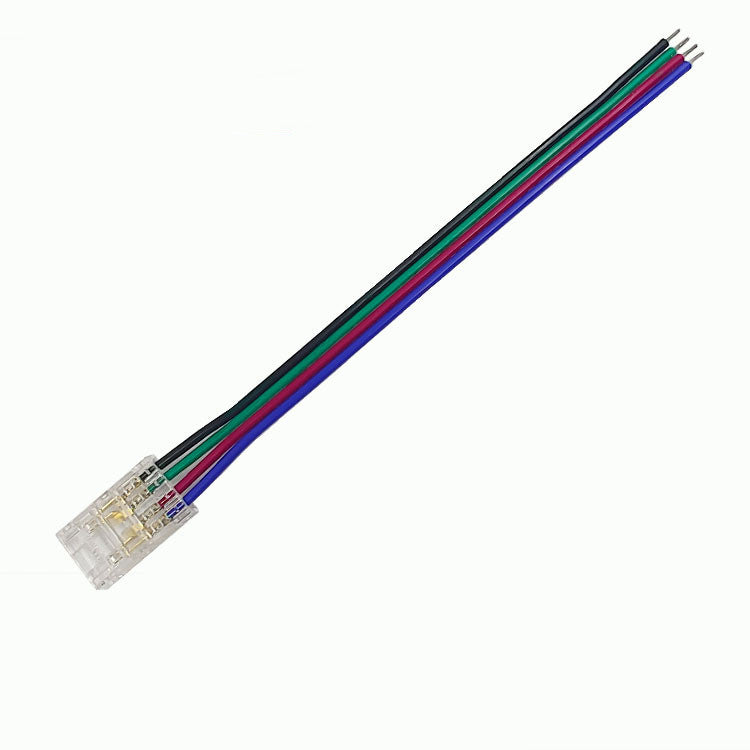

| Strip with Wire | 10 × 10mm 4Pin Transparent Crystal Strip Connector with Wire |

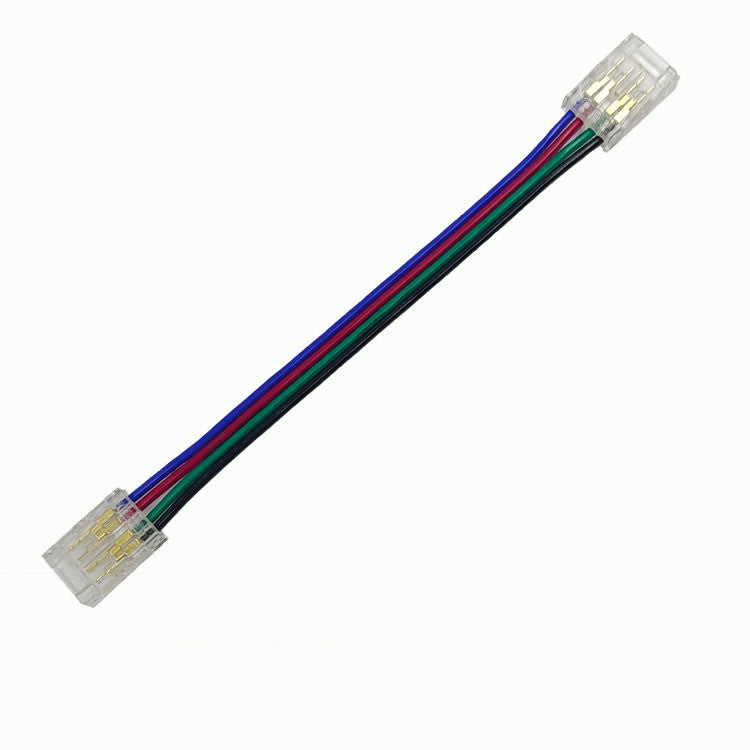

| Strip to Strip with Wire | 10 × 10mm 4Pin Transparent Crystal Strip to Strip Connector with Wire |

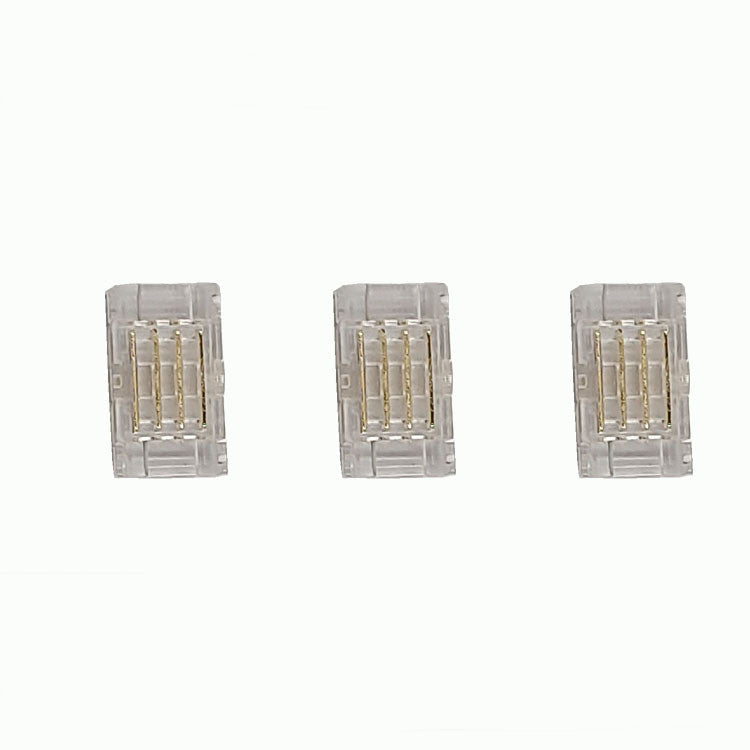

| Strip to Strip | 10 × 10mm 4Pin Transparent Crystal Strip to Strip Connector |
| Strip to Wire | 10 × 10mm 4Pin Transparent Crystal Strip to Wire Connector |

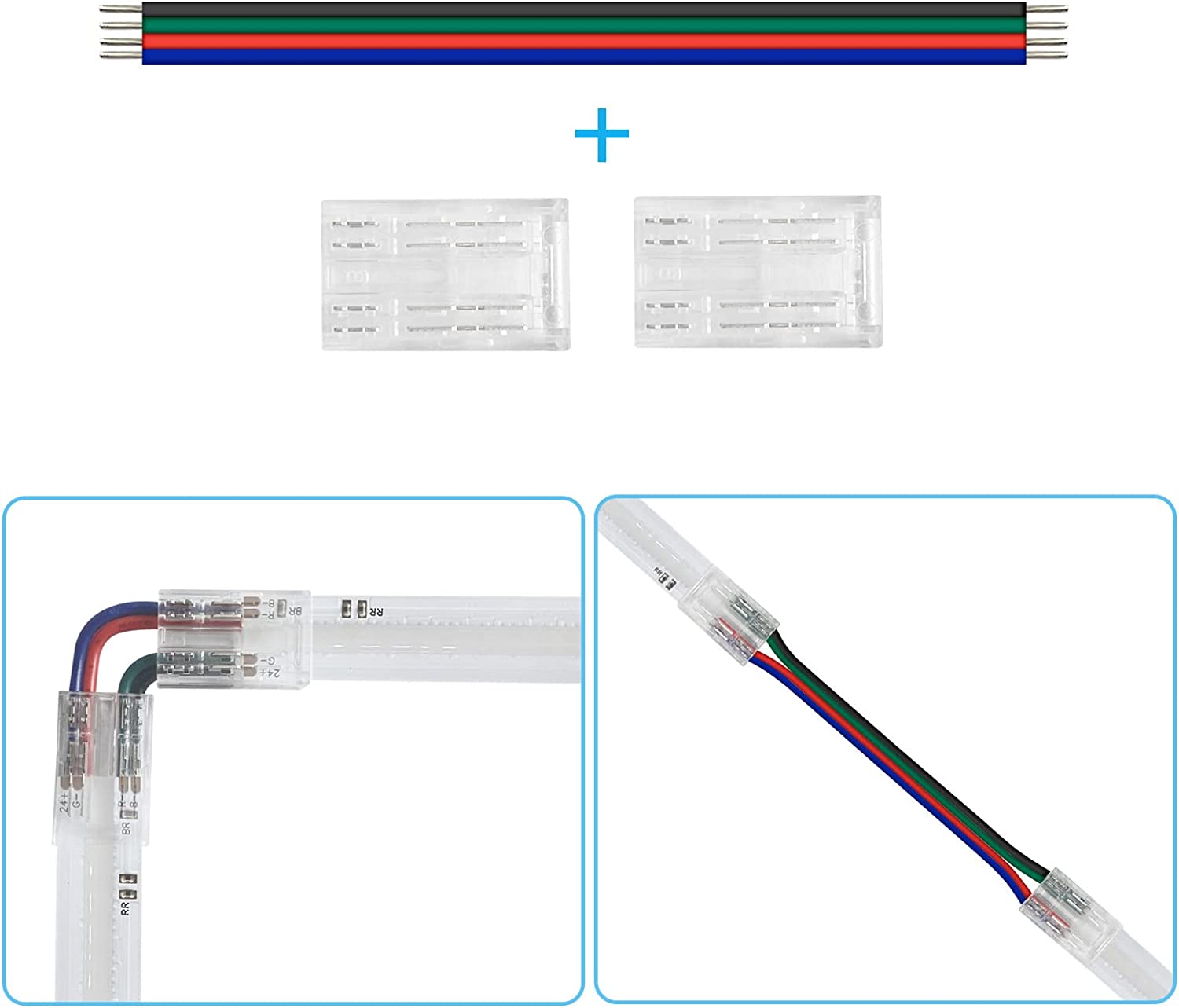

| L-Shape Connector | 10 × 10mm 4Pin Transparent Crystal L-Shape Connector |
| Strip to Female Plug | 10 × 10mm 4Pin Transparent Crystal Strip to Female Plug Connector |
About this item
- 4Pin connector for 10mm wide RGB LED strips (5050 / 5630)
- Transparent crystal housing provides seamless illumination without dark areas
- Supports up to 4A current and 0–24V DC voltage
- Solderless snap-down design for fast and secure installation
- Compatible with waterproof and non-waterproof strips (remove silicon coating around soldering pads for waterproof use)
- Durable, reusable, and ideal for both DIY and professional lighting projects
Order & Logistics
- Lead Time: Ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Dispatched from headquarters warehouse
- Express Shipping (DHL/UPS/FedEx): 3–10 days
- Free Shipping: Orders over $399 qualify for free standard shipping.
Key Specifications
| Specification | Value |
| Input Voltage | up to 24V DC |
| Current Capacity | up to 4A |
| Connector Type | 4Pin, 10mm solderless clip |
| Compatible Strips | 10mm RGB LED strips |
| Housing | Transparent crystal plastic |
| Versions | Strip with Wire, Strip to Strip with Wire, Strip to Strip, Strip to Wire, L-Shape, Female Plug |

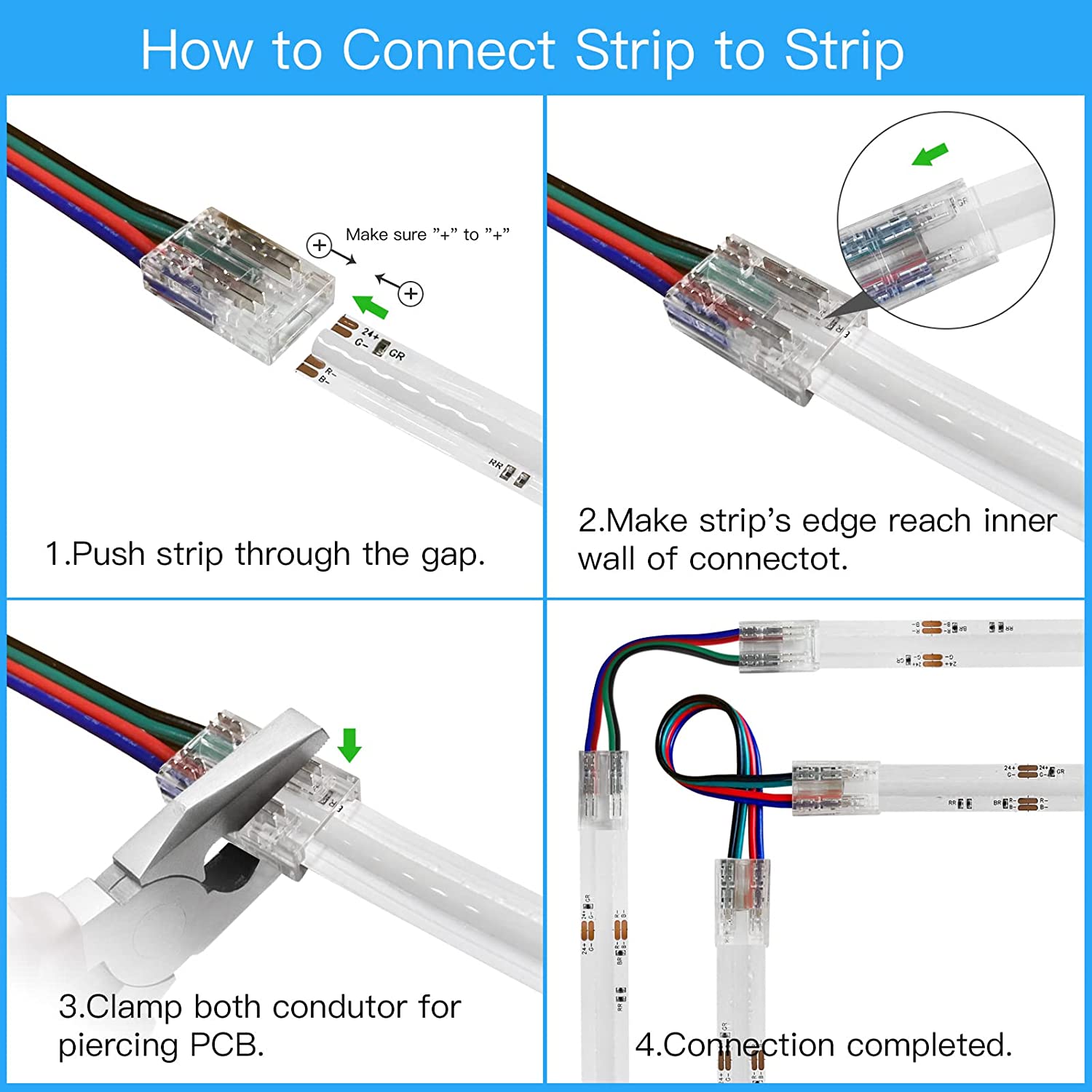

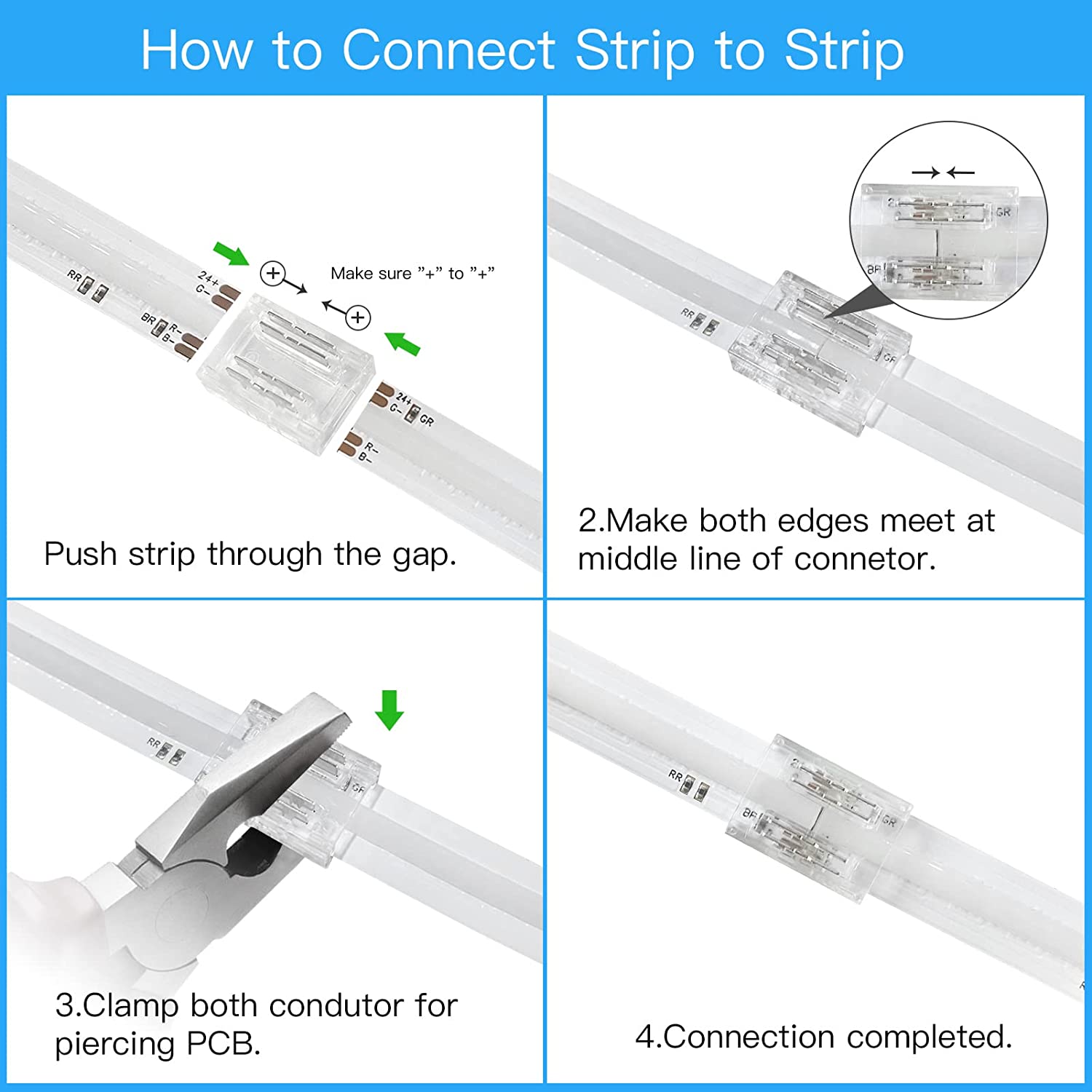

Usage Notes / Installation Tips
- Ensure RGB polarity (R/G/B/+) alignment before closing the connector
- For waterproof strips, peel off silicon coating over solder pads before connection
- Do not exceed rated current or voltage capacity
- Recommended for indoor use unless otherwise protected
Applications

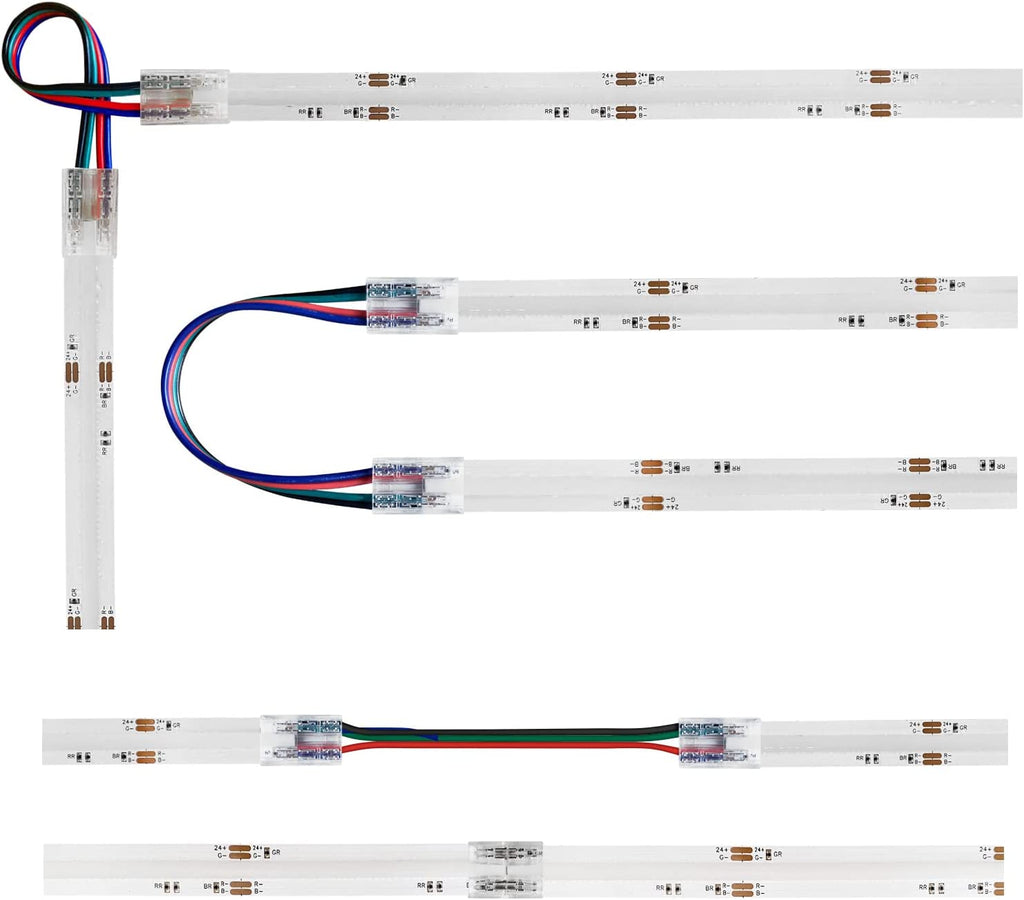

- RGB LED strip light connections without soldering
- Clean joints with transparent housing for continuous color lighting
- Home, retail, and entertainment lighting projects
- DIY and professional RGB LED installations
