Description
V Shape LED Channel V01-A – 12mm | Silver / Black | Milky White Cover | With Installation Accessories | – Heavy-Duty Aluminum Profile – 1 m / 2 m / 3 m | 50 / 100-Pack

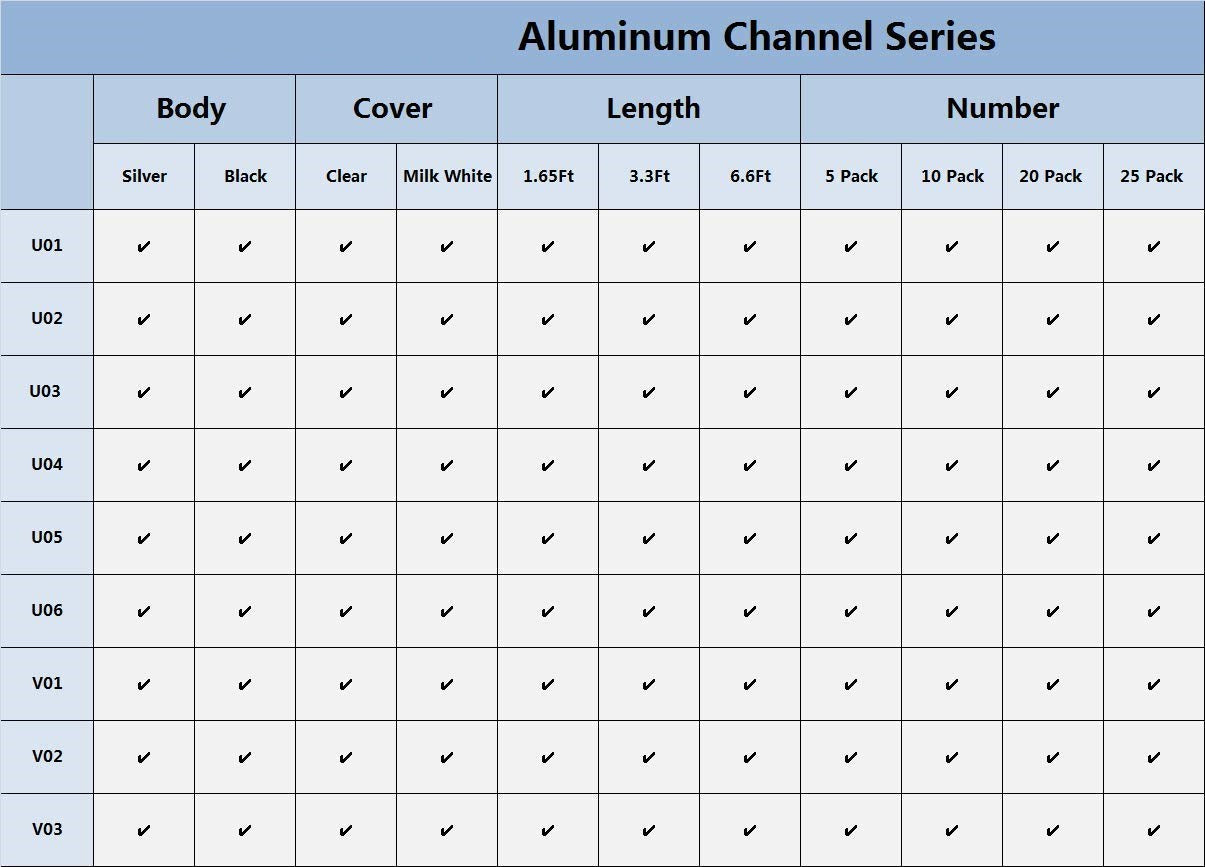

Package Included
| Version | Package Included |
| Silver – 1 m × 50-Pack | 50 × 1 m Aluminum Channel (V-shape, Silver); 50 × 1 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws |
| Silver – 2 m × 50-Pack | 50 × 2 m Aluminum Channel (V-shape, Silver); 50 × 2 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws |
| Silver – 3 m × 100-Pack | 100 × 3 m Aluminum Channel (V-shape, Silver); 100 × 3 m Milky White PC Lens; 200 × End Caps; 600 × Mounting Clips,Expansion tube, screws |
| Black – 1 m × 50-Pack | 50 × 1 m Aluminum Channel (V-shape, Black); 50 × 1 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws |
| Black – 2 m × 50-Pack | 50 × 2 m Aluminum Channel (V-shape, Black); 50 × 2 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws |
| Black – 3 m × 100-Pack | 100 × 3 m Aluminum Channel (V-shape, Black); 100 × 3 m Milky White PC Lens; 200 × End Caps; 600 × Mounting Clips,Expansion tube, screws |
About this item
- Lightsworld aluminum profile kit for low-cost DIY under-cabinet lighting fixtures
- Supports recessed or surface mounting on furniture, cabinets, shelves, drywall, wooden partitions, etc.; also creates decorative light bands on walls, ceilings, floors, work surfaces, steps, and niches

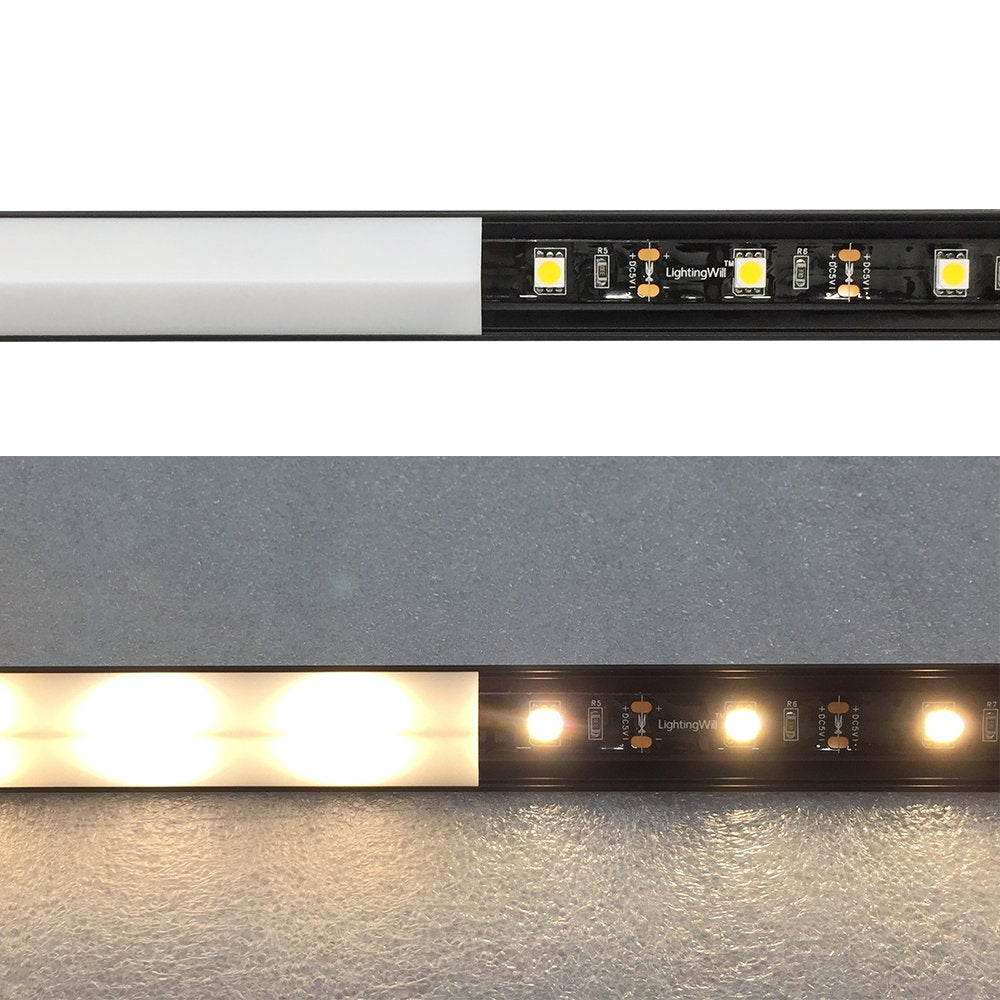

- Oyster/opal milky PC cover spreads light for uniform, glare-reduced illumination
- Works with flexible or rigid LED strip lights (≤ 12 mm width)
- Complete kit includes channel, diffuser cover, end caps, and mounting clips
- Extendable design; connect multiple meters seamlessly for longer runs
Order & Logistics
- Lead Time: Ships within 3–8 business days after order confirmation
- Packing: Heavy-duty cardboard box with protective padding
- Shipping Note:
-
LED aluminum profiles are classified as oversized products and require special packaging and logistics handling. Therefore, this product series is not included in our Free Shipping Policy for orders over $399, and shipping fees will be charged based on the actual freight cost. Air Freight (10–20 Days - Air + Ground)
- Terms: All freight shipments are under DDP terms (all duties & taxes included). For countries where this service is unavailable, buyer will be contacted before dispatch
Key Specifications
| Specification | Value |
| Configuration | Corner V-shape aluminum channel |
| Material | Extruded aluminum; diffuser: oyster white PC |
| Height | 0.63 in (16 mm) |
| Width | 0.63 in (16 mm) |
| Inner Diameter | 0.47 in |
| Max LED Strip Width | ≤ 12 mm |
Usage Notes / Installation Tips
- Cut channels to required length before installation
- Mark and pre-drill mounting holes; fix with mounting clips or screws
- Place LED strip (observe polarity/voltage), then snap on the diffuser cover
- Indoor use recommended; ensure ventilation for heat dissipation
Applications
- Under-cabinet and shelf lighting
- Accent lines at wall/ceiling corners and niches
- Retail display and showcase illumination
- General decorative linear lighting
