How to Dim Low-Voltage LED Strips and How to Choose Power Supplies and Controllers

In modern lighting design, low-voltage LED strips have become widely popular due to their flexible installation and versatile lighting effects. Compared with traditional fixtures, dimmable LED strips can create different atmospheres while improving energy efficiency. However, many people are still unsure about how to choose the right power supply and controller for their low-voltage strips. To understand this, we first need to look at how strips are powered and controlled.

1. The Relationship Between LED Strips, Power Supplies, and Controllers

The key feature of low-voltage LED strips is their low operating voltage (commonly 12V or 24V DC). Therefore, household AC power (AC 100–240V) must be converted through a constant-voltage power supply before driving the strip. The power supply solves the “powering” issue, while the controller determines the “how”: brightness adjustment, color temperature changes, or multi-color effects.

You can think of it this way:

• The power supply is the energy entry point, ensuring stable output and longer strip lifespan.

• The controller is the expression tool, adjusting dimming or colors to create different lighting effects and ambiences.

2. Option One: Constant Voltage Power Supply + Low-Voltage PWM Dimmer

This is the most common and flexible setup. The principle is simple: the power supply delivers stable voltage, while the dimmer uses PWM (Pulse Width Modulation) to adjust the on/off ratio of the current, smoothly changing brightness or color.

This option applies to nearly all types of low-voltage strips:

• Single-color strips: Usually paired with knob dimmers or wireless RF remotes—straightforward and easy to use.

• CCT dual-color strips: Adjust brightness and switch between warm and cool tones.

• RGB / RGBW strips: Work with IR, RF, or WiFi controllers to achieve rich color effects.

For example:

① In cabinet lighting, you can use a knob dimmer to achieve smooth brightness adjustment.

② In living room ambient lighting, a WiFi smart dimmer is suitable for integrating your strips into a smart home system.

③ For RGBW strips, a 24-key IR controller or a music-sensitive controller can provide a more interactive experience.

This option is simple to wire, offers a wide variety of controllers, and works for everything from DIY setups to colorful smart systems.

3. Option Two: Conventional High-Voltage Dimmer + Dimmable Power Supply

This approach places the dimming stage on the AC high-voltage side. The principle: high-voltage dimmers (TRIAC, 0–10V, DALI, etc.) adjust the AC signal, and the dimmable constant-voltage power supply interprets that signal, then outputs the corresponding 12V/24V DC to power the strips.

This option is more suitable for:

• Residential lighting: Homes with existing wall dimmer switches that need to be compatible with low-voltage strips.

• Commercial/engineering projects: Hotels, exhibitions, offices where centralized control and unified dimming protocols are required.

• High-power applications: When a single circuit load is too heavy for low-voltage dimmers.

For example:

① In shopping malls or hotel projects, a 1500W high-voltage LED dimmer paired with a dimmable constant-voltage power supply can drive large-scale strips reliably and consistently.

② In residential environments, if a TRIAC wall dimmer is already installed, it can work directly with a dimmable power supply to dim LED strips in bedrooms or living rooms while maintaining the same control experience as traditional fixtures.

③ In commercial projects, 0–10V or DALI systems are often used. With centralized control panels and dimmable power supplies, multiple groups of strips in showrooms or office buildings can be managed together, ensuring uniform lighting performance.

4. Extended Functions: Beyond Dimming

Modern controllers not only dim lights but also add advanced features, expanding LED strip applications:

• Motion sensors: Ideal for hallways or cabinets, such as a 6A motion sensor switch.

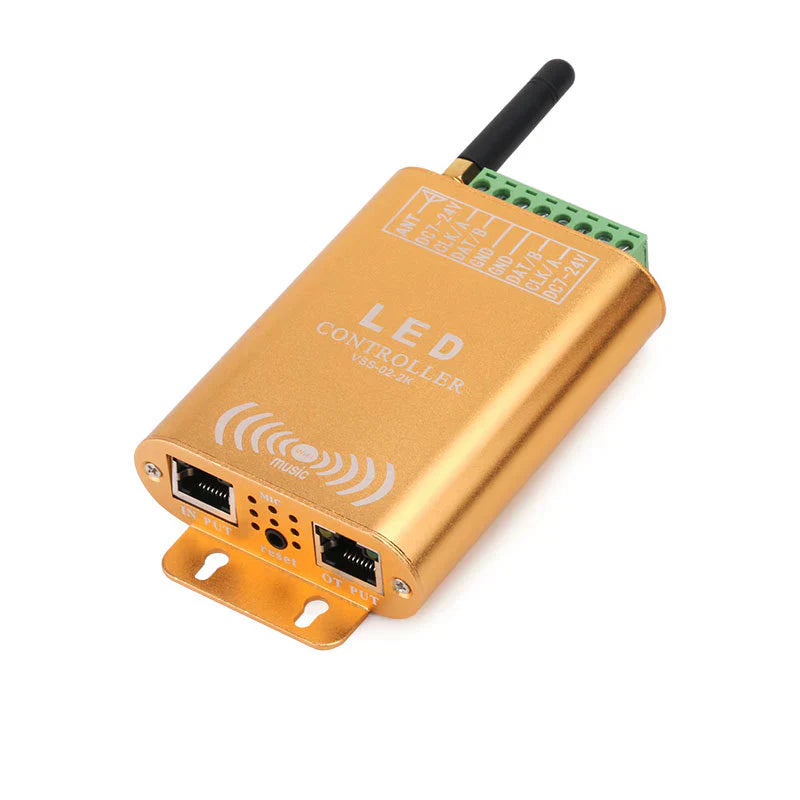

• Music sync: Perfect for parties or stages—music controllers let strips flash in rhythm with music.

• Smart home integration: WiFi or Bluetooth controllers can connect to Alexa or Google Home.

• Signal amplifiers: For long strips, RGBW amplifiers ensure consistent brightness.

5. Conclusion: Choosing the Right Option

When selecting a dimming method, consider the following:

• Small spaces / DIY projects: Constant voltage + basic dimmer is the easiest and most efficient.

• Colorful ambiences / smart homes: WiFi, Bluetooth, or music controllers are the best choice.

• Large projects / centralized control: High-voltage dimmers + dimmable power supplies are more professional.

In the end, dimming LED strips is not a technical barrier—it’s about choosing the right combination of power supply, controller, and application scenario.
