When it comes to setting up LED displays, whether for small businesses, digital signage, or artistic installations, a reliable and easy-to-use LED control system is crucial. The MoonCell LED Control System provides a versatile, user-friendly solution perfect for those who are new to LED display setups. In this guide, we will explore the core components of the MoonCell system, how they work together, and walk you through the setup process step by step.
If you're just getting started with MoonCell, this beginner-friendly guide will take you through everything you need to know—from hardware to software—so you can get your LED screen up and running without any hassle.
What is the MoonCell LED Control System?
The MoonCell LED control system is designed to manage and control the performance of LED screens, providing high-definition, clear, and synchronized content. It consists of several core components that work together to ensure smooth operation of your display.
These components include:
-
Sending Cards: Responsible for transmitting the image or video signal to the LED screen.
-
Receiving Cards: These cards receive the signal from the sending card and control how the content is displayed across the LED panels.
-
Player Boxes: The central unit that manages the LED screen’s content playback. The player box allows for media content to be scheduled, edited, and synchronized across multiple displays if necessary.
MoonCell Control System Architecture
The MoonCell control system is divided into three main parts, each playing a key role in the functioning of the LED display:
-
Sending Card (MoonCell V30 Pro)
The sending card is the starting point of the MoonCell control system. It transmits the video signal to the receiving cards. The MoonCell V30 Pro sending card is a high-performance unit capable of handling up to 1.3 million pixels, ensuring high-quality output for large screens. -
Receiving Card (MoonCell A Series)
The receiving cards are responsible for receiving data from the sending card and distributing it to the LED modules. The MoonCell receiving cards come in various configurations to meet different needs:-

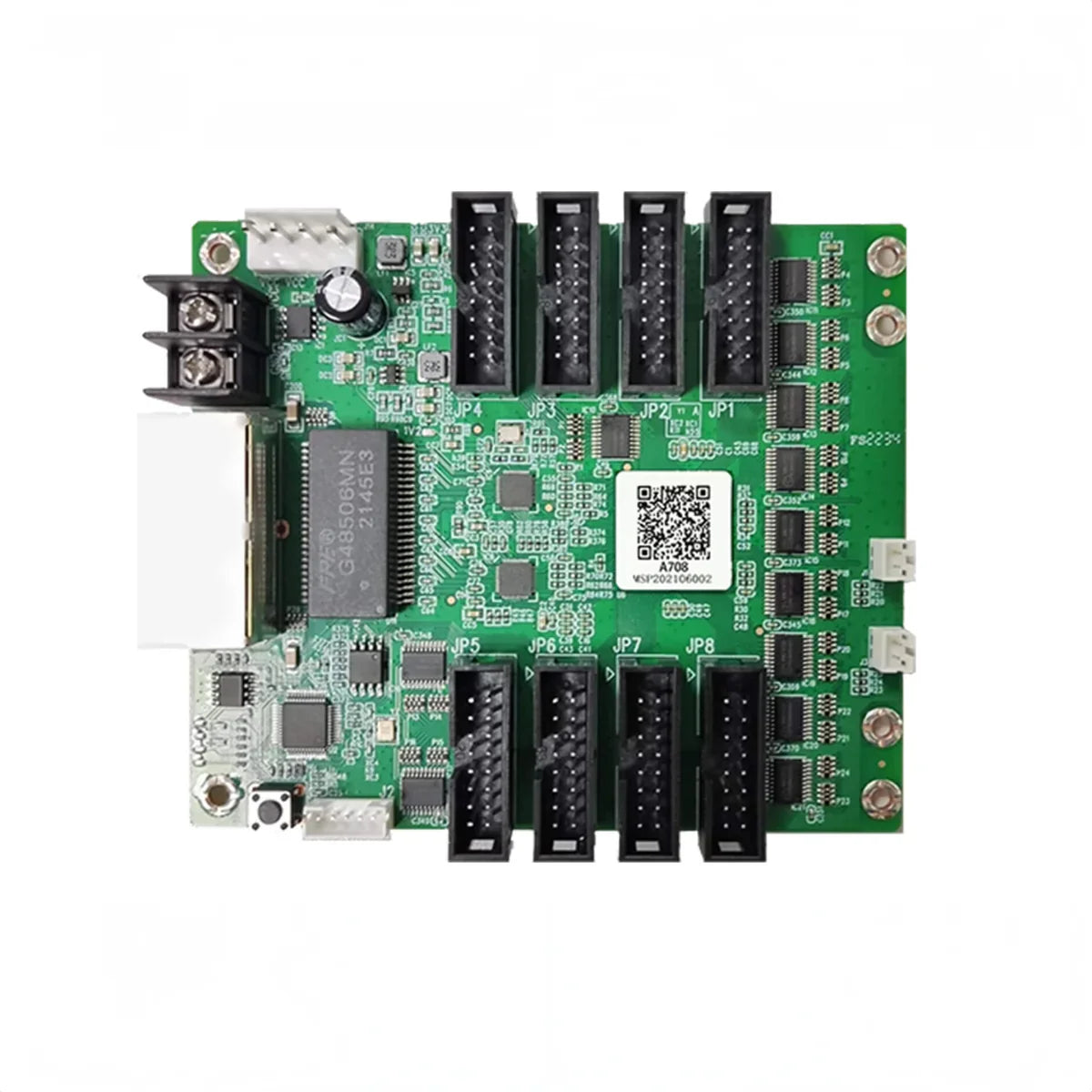

MoonCell A708: 512x256 pixel capacity with 16 RGB parallel data sets.
-
MoonCell A712: 512x384 pixel capacity with 24 RGB parallel data sets.
-
MoonCell A716: 512x384 pixel capacity with 32 RGB parallel data sets.
These cards are designed to handle different screen sizes and pixel densities, making them versatile for both small and large displays.
-
-
Player Boxes (MoonCell MP1, MP2, MB4, MB6)
The player boxes are responsible for managing the media content played on the display. They are essential for asynchronous playback, scheduling, and control. MoonCell offers several player box models to suit different needs:-
MoonCell MP1: Suitable for displays with up to 0.65 million pixels.
-
MoonCell MP2: Designed for displays with up to 1.3 million pixels.
-
MoonCell MB4 and MB6: Dual-mode controllers with higher capacities, perfect for larger and more complex installations.
-
Software Introduction: MoonCell LED Studio / MoonCell Player / ViPlex
A key part of the MoonCell system’s functionality is its software. There are three main software solutions used to control and configure your LED display:
-
MoonCell LED Studio: This is the primary software used to configure your entire MoonCell system. It allows you to adjust settings for the sending and receiving cards, create playlists, and configure display content. It is designed for ease of use, even for beginners.
-
MoonCell Player: This software works in tandem with MoonCell LED Studio and is used for content playback and scheduling. It supports a variety of media types, including video, images, and text, and can be used to program content to be displayed at specific times.
-
ViPlex: ViPlex is used to remotely monitor and control your LED display system. It allows for real-time adjustments and troubleshooting, ensuring your display always operates smoothly.
Basic Installation and Wiring Steps
Now that you are familiar with the components and software, let’s go over the basic installation process for the MoonCell LED control system. Follow these steps to set up your display system:
-
Install the Sending Card
Begin by inserting the MoonCell V30 Pro sending card into the computer or server that will be running your content. This card is responsible for transmitting the video signal. -
Connect the Receiving Cards
Next, connect the MoonCell receiving cards (e.g., A708, A712, or A716) to the LED panels. Ensure that the cables are securely attached, and the correct configurations are set for the type of LED screen you are using. -
Connect the Player Box
The MoonCell MP1, MP2, MB4, or MB6 player box should be connected to the sending card to receive and manage the media content. Make sure to connect all the necessary cables, including the power cables, to ensure the system is powered on. -
Install the Software
Download and install MoonCell LED Studio, MoonCell Player, and ViPlex on your system. These programs will allow you to configure and control your LED display setup. Follow the on-screen instructions to set up each software. -
Test the Display
Once everything is connected, power on your system and test the display. Ensure that the sending card, receiving cards, and player box are communicating properly, and verify that the content is displayed correctly on the LED panels.
First-Time Setup Tips and Troubleshooting
As a first-time user, you may encounter some common issues during your initial setup. Here are some helpful tips and troubleshooting steps:
-
Ensure Proper Wiring: One of the most common setup issues is incorrect wiring. Double-check all connections to make sure the sending and receiving cards are properly connected to the player box and the LED panels.
-
Update Software: Always make sure you are using the latest version of MoonCell LED Studio, Player, and ViPlex. Software updates often include bug fixes and performance improvements.
-
Content Display Issues: If the content isn’t displaying correctly, try checking the resolution settings in MoonCell LED Studio. You may need to adjust the pixel density or resolution to match the capabilities of your display.
-
Communication Errors: If you encounter communication issues between the cards, check the network connections. Ensure the cards are properly connected via the correct network cables.
-
Content Scheduling: When scheduling content in MoonCell Player, make sure the times are set correctly and the media is compatible with the system’s requirements.
Conclusion
The MoonCell LED control system provides a powerful and easy-to-use solution for controlling and managing LED displays. Whether you’re a first-time user or an installer, the MoonCell system’s components—sending cards, receiving cards, and player boxes—are designed to work seamlessly together to provide a high-quality, reliable display.
By following the steps outlined in this guide, you can easily set up your MoonCell system and start displaying content on your LED screen. The intuitive MoonCell LED Studio, MoonCell Player, and ViPlex software make it easy to configure, manage, and monitor your displays, ensuring they perform optimally.
