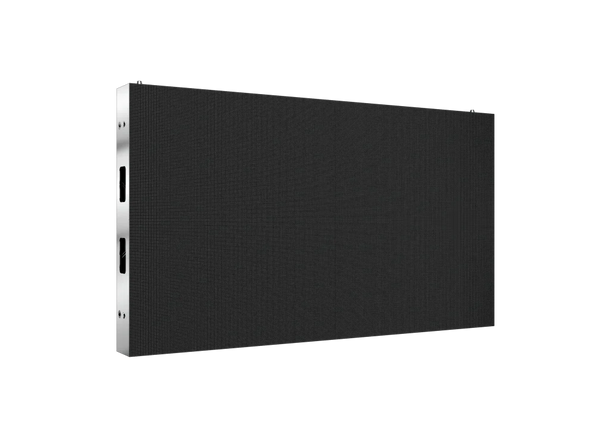

Ultra-High Resolution LED Display Tile

People's expectations and demands for high-definition visualization have never stopped, even the rising star as LED must meet the trend. Since the day got in this business, HUAKE has been working on owned UHD solutions. While now you may find answering elements among HUAKE's product lines. Not merely for the common indoor UHD applications, but the very special outdoors.

2021 New Catalog of HUAKE LED Display

Catalog of Fine Pixel Pitch LED Display Screen

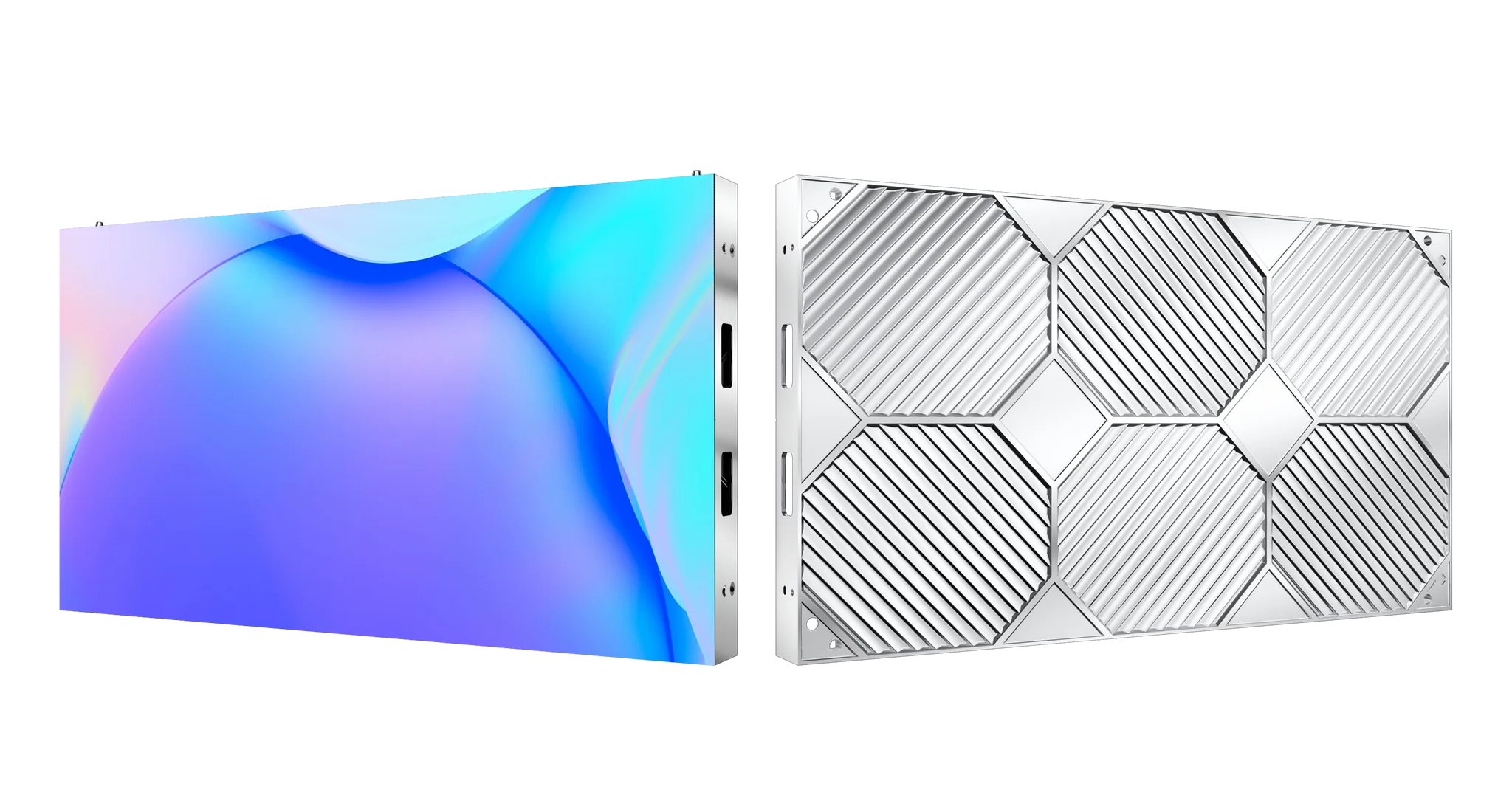

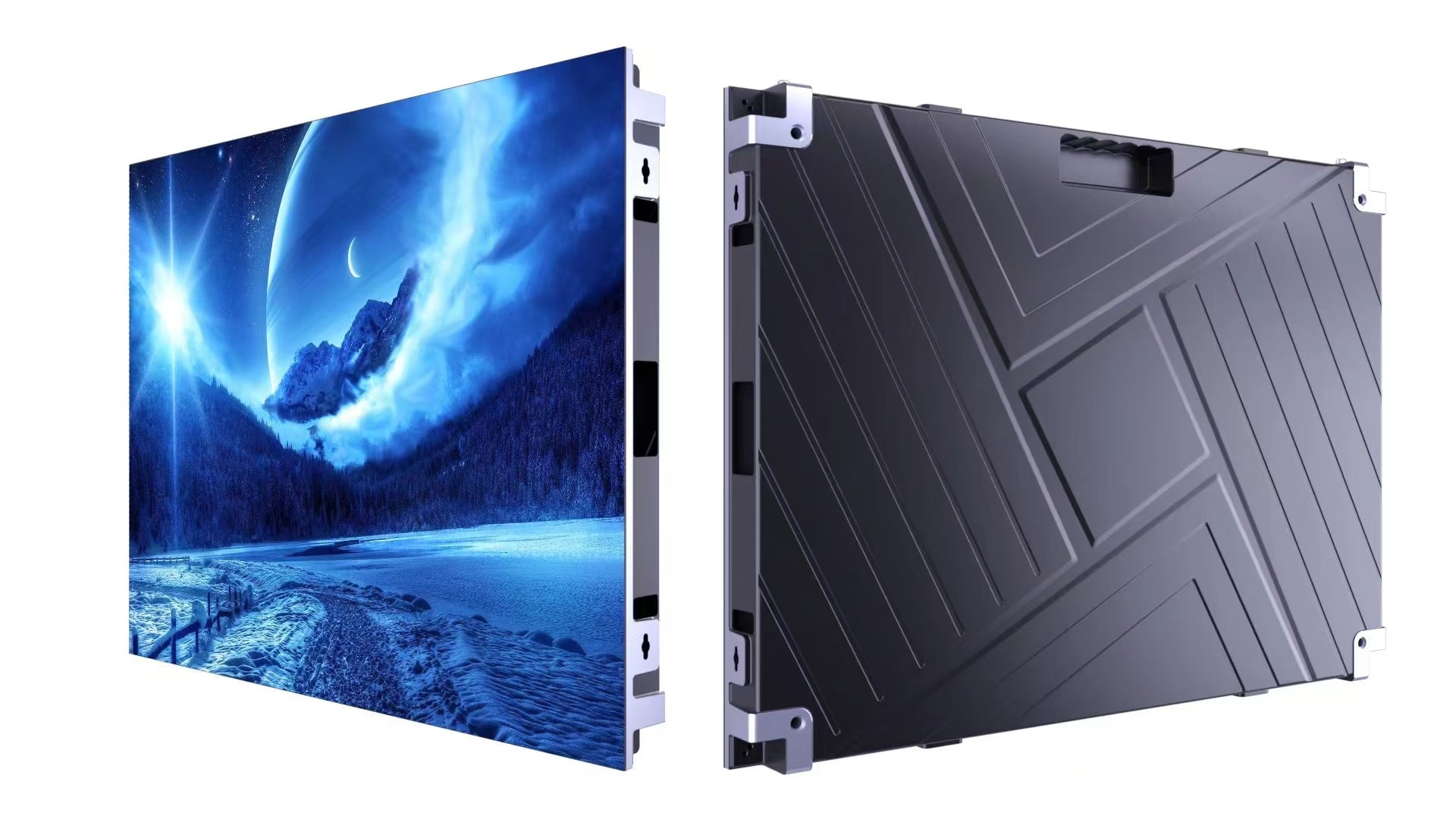

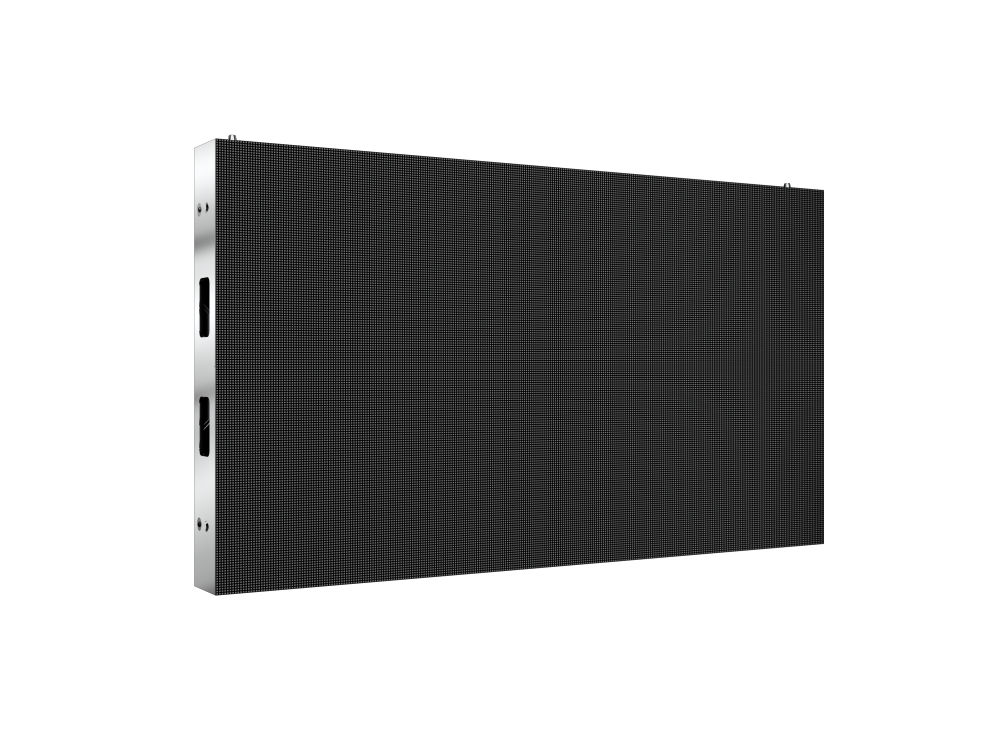

600 Series 600x337.5mm	640 Series 640x480mm	480 Series 480x480mm	600 GOB Series 600x337.5mm	480 GOB Series 480x480mm	480 GOBO Series 480x480mm (Outdoor Solution)

GOB  Moudle VS Tranditional Module Special no mask surface treatment enables screen flatness No prominent feeling Better when matched with touch control system.	GOB  (Glue on board) Technology         Full protection to LED SMDs         IP65 waterproofed                 GOB is the key for outdoor solution
Pitch Options     640 Series 1.25mm, 1.379mm, 1.538mm, 1.86mm, 2.0mm and 2.5mm    600 Series 1.25m, 1.45mm 1.563mm & 1.876mm             480 Series 1.875mm, 2.0mm 2.5mm & 3.0mm Fine pixel pitchesfit for various applications. Smaller pixel spacing LED screen, with high density display characteristics, suitable for close viewing, does not produce graininess
16:9 PERFERCT RATIO The 16:9 aspect ratio (for 600 series) perfectly fits standard content and the fine-pitch pixels provide outstanding image quality for up-close viewing distances	Better Presentation for Dynamic Movements The lightening principle of LED unit is self-luminous, this reduces delays in time of the reactions by the components, therefore, imaging of dynamic movement shown on LED screen is always better than other visual hardware, like LCD or projector.
COLOR CONTRAST & DEEPTH * High contrast delivers vivid and distinctive picture quality through a wide range of color details with deep contrast. To meet the requirements of high - definition camera shooting without moire phenomenon. It can satisfy the demand of broadcasting and display field * 16-bit color processing provides a higher greyscale level, giving a more realistic and sophisticated content.	HIGH REFRESH RATE * A high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, ensure the clarity and smoothness of every frame of the picture, providing the best visual effect.
Seamless Combination                     Bezel free of each tiles allows a large LED displays or video wall combined without seams could not be ignored, this makes great sense for building an ultra high definition visual display.	WIDE DISPLAY ANGLE 160°super wide horizontal and vertical viewing allow for maximum audience engagement in short viewing distances

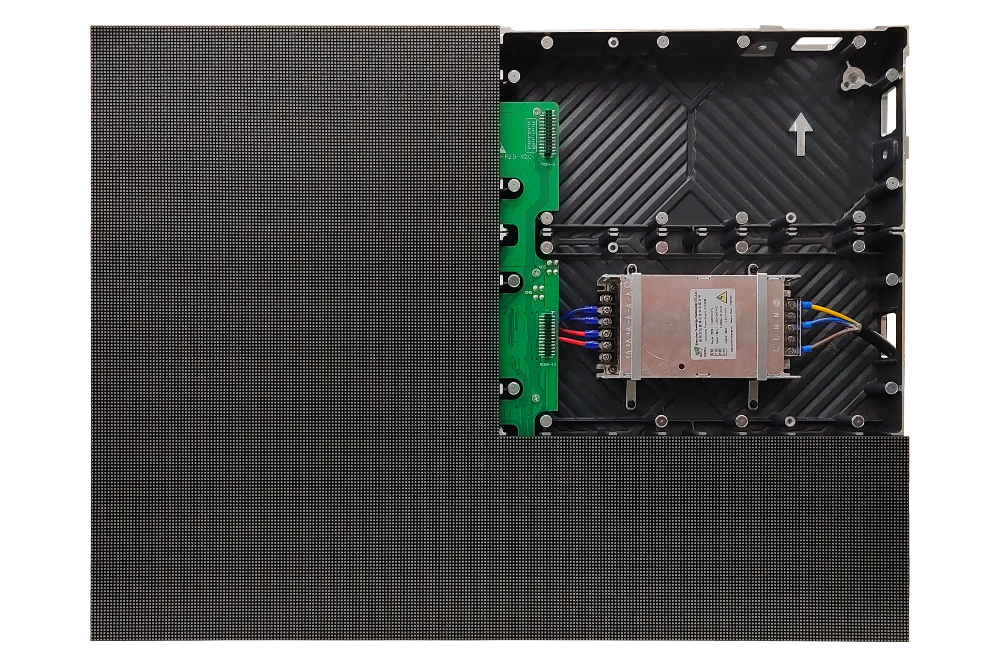

Front Access Maintanence         Magnetic mounts.         Quick replacement	Wide Color Gamut     Full RGB, vivid pictures

Fine-pitch Direct-view LED Displays

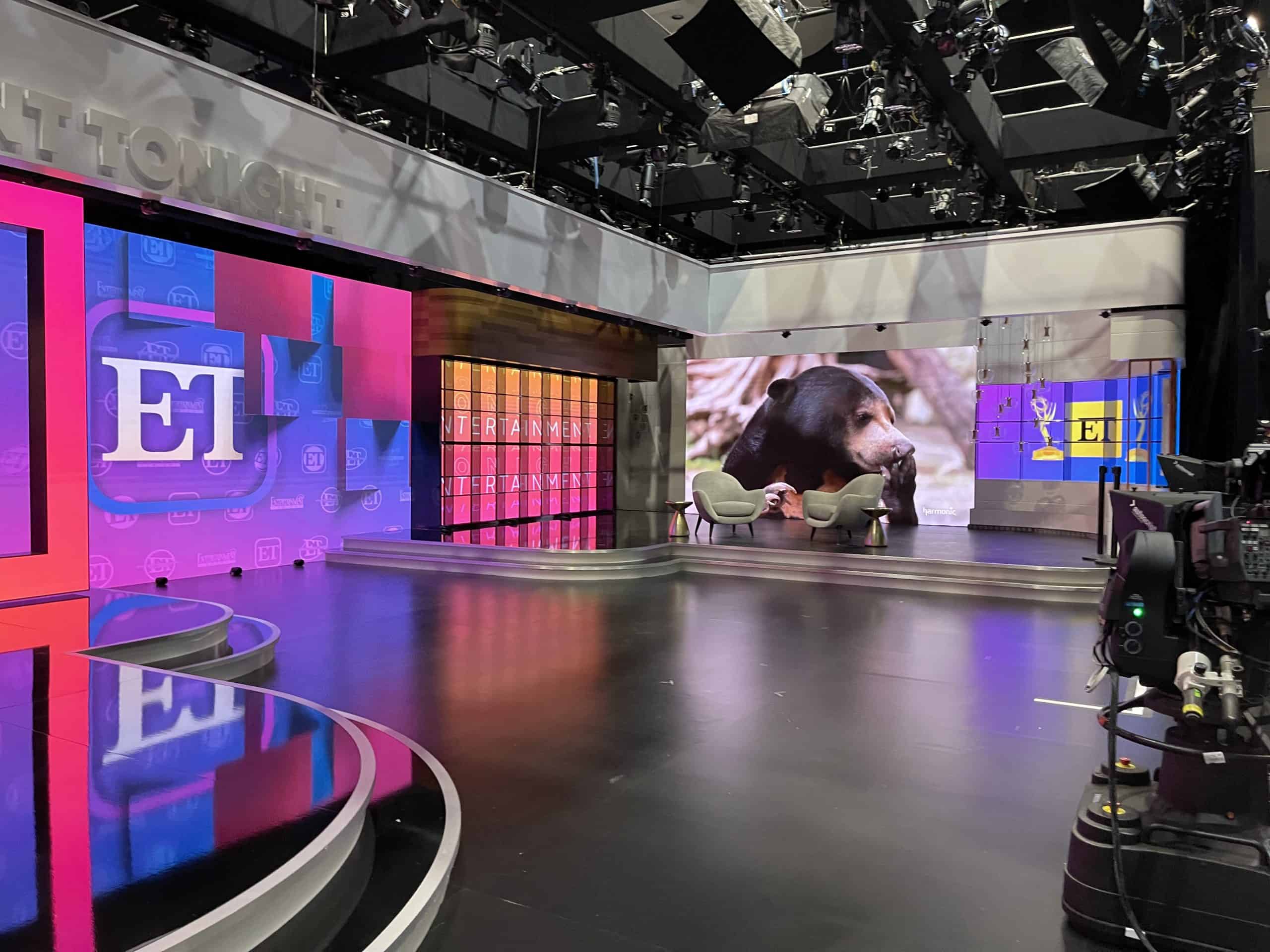

Fine Pitch LED Display boasting detailed color and super contrast which deliver true-to-life images and videos with high precision pixel pitches, bringing a great viewing experience to the audience at a close distance to the screen wall.It is often seen in studios, monitoring rooms, art exhibitions and other occasions that have high quality requirements for images or video.

Fine-pitch direct-view LED Displays VS LCD Video Wall

Fine-pitch Direct-view LED Displays products will gradually replace LCD video wall products in the future.

• The most intuitive feature is the LCD video wall gap, which is unavoidable at the physical level. Even though some remedies have emerged, the limited single-screen area is a natural advantage of small-pitch LED displays.
• The brightness of the display, the brightness of the LCD video wall is derived from the reflection of the module backlight LED panel. So most of the LCD video Wall products we see have a brightness of <400cd/m2. The small-pitch LED display is self-illuminating, so the small-pitch LED display shows brightness >400cd/m2. The brightness under special configuration is >4500cd/m2.
• Resolution Contrast, resolution refers to the number of pixels displayed, which we often call 2K (1920 * 1080 pixels), 4K (2840 * 2160 pixels). In terms of the number of pixels displayed per unit area, the number of pixels per unit area of ​​P2 is much larger than that of the LCD splicing screen.
• The viewing angle and viewing distance, because the liquid crystal is continuous overall illumination, so his screen viewing distance will be relatively close (so you can see it clearly at a few centimeters). However, the small-pitch illumination source comes from the lamp bead itself so it has a minimum viewing distance. The smaller the pixel pitch, the smaller the minimum viewing line of sight. Of course, not many uses need to be viewed within a few distances. So in most scenes, the small pitch has completely replaced the LCD video Wall product.

Focus on more perfect Small Pitch LED Display

LED Display GOB technology, commonly known as the glue filling process, the Fine Pitch LED Display screen removes the mask and loses its protection. It is covered with nano-glue to protect the lamp beads from falling off and damage. We are able to offer the main features of the new GOB technology process.

1. Mechanized mass production of rubber coating thickness is more uniform, completely solve the problem of inconsistent color of the module ink color.
2. Neutral soft rubber, avoiding the problem of LED board and lamp bead falling off caused by hard gel aging.
3. the industrialization maturity is higher, greatly improving the production efficiency of the product and high yield production.

Below products are from our own LED Display manufacturer : SHENZHEN HUAKE LIGHT ELECTRONICS CO., LTD. (https://www.led.app or https://www.360digitalsigenage.com). All your inquries about LED Display will be replied within one working day directly from manufacturer's sales team.
